Sand casting is a viable option for low-cost metal prototyping, offering a cost-effective method for creating complex metal parts. This procedure pours molten metal into a sand mold, enabling the fabrication of parts with fine details.
Compared to many other metalcasting processes, sand casting’s tooling is cheap, which is why it’s often used for prototyping and low-volume production. It accommodates metals such as aluminum, bronze and steel.
With its versatility and low cost, sand casting is an appealing option for businesses looking to validate and iterate on their metal designs without making a large upfront investment.
What is Sand Casting?
Sand casting is a technique of manufacturing metal parts from a mold of compressed and bonded ‘sand’. Essentially you make a pattern and employ it to form a two piece mold called the cope (or top) and drag (the bottom).
Why is sand cast important because it can produce complex metal parts with accuracy and precision and this is a very important process in metal prototyping. Sand casting dates to prior to 1000 B.C. Is considered to be the oldest casting process.
1. Pattern Creation
Designing a sand casting pattern is important, because it defines the ultimate shape and quality of the metal component. The pattern, which is generally constructed from wood, metal, or plastic, must be precise and of good quality in order to cast a superior metal part.
There are various types of patterns used in sand casting such as single-piece patterns, split patterns, and segmented patterns. On the pattern side, you’ll have pattern-making software, CNC machines and materials for craftsmanship like wood, metal and plastic.
2. Mold Preparation
Mold preparation: A key step in sand casting is mold preparation, i.e., the formation of a mold cavity using the pattern. The sand for mold preparation is often mixed with clay binders, like Bentonite.
The significance of mold compaction and surface finish is not to be underestimated, because the mold directly influences the quality of the final metal piece. Mold preparation consists of sand mixing, mold assembly and compaction.
3. Core Placement
The core’s placement in the mold is important because it defines the internal shape and quality of the metal part. There are various types of cores used in sand casting, such as sand cores, ceramic cores, and metal cores.
Core placement and alignment are critical for creating a good metal part and the equipment and materials required for core placement consist of core-making software, CNC machines, and materials like sand, ceramic, and metal.

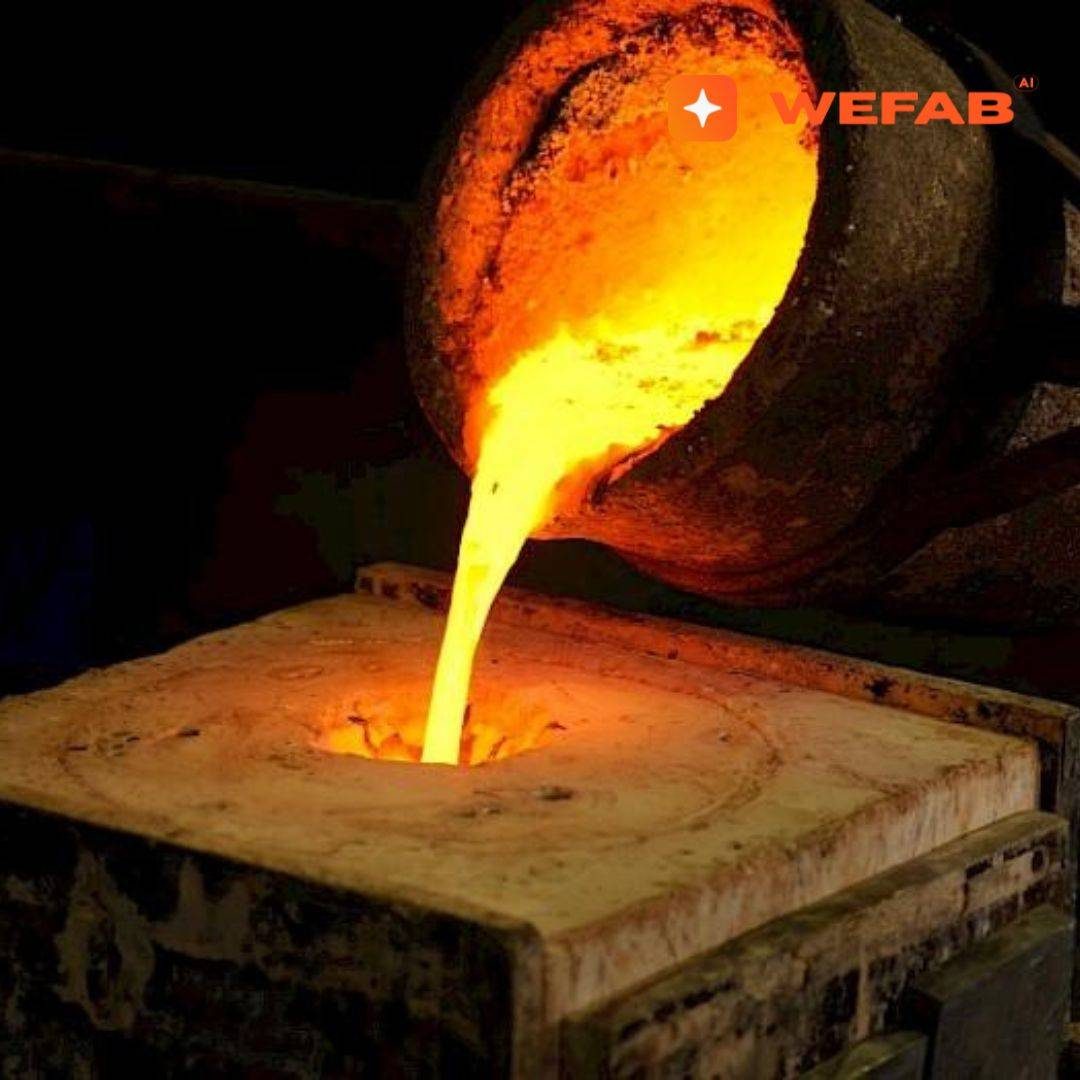

4. Pouring Metal
It requires melting the metal to a high temperature and pouring it into the mold cavity. Metals in Sand Casting – aluminum, copper, iron and steel.
Temperature control and pouring technique can make or break the final metal part.
5. Solidification
Sand casting solidification — the sand casting solidification stage includes the cooling and solidification of molten metal in the cavity of the mold. These factors influence solidification time and quality, such as metal temperature, mold temperature, and cooling rate.
Solidification is critical in determining the final product quality and techniques used to control solidification include cooling systems and insulation.
6. Part Extraction
The final step, pulling the part from the mold, consists of gently removing the metal part from the mold cavity. Various methods exist for part removal, among them manual extraction and mechanical extraction.
It must be handled carefully and cleaned properly to prevent metal part damage.
The Cost-Effective Advantage
Sand casting is an extremely cost-effective method of low-cost metal prototyping in many cases, particularly low-volume runs. It has a low setup cost, which is appealing to manufacturers. That’s because sand casting is our low-cost casting solution, particularly for small to mid-volume runs. If you’re making thousands of castings, it’s not as cost-effective — which is why sand casting is better for the smaller runs.
The cost advantages of sand casting versus other approaches are pretty big. Because sand casting is less expensive to produce, it works well for lower volume runs. Because of the straightforwardness of the mold making process, sand casting typically has short lead times and quick turnaround times – a cost-effective advantage. Sand casting is the cost-effective solution to custom metal parts with complex designs and diverse materials.
Tooling Costs
Tooling costs in the sand casting process refer to the expenses associated with creating the molds and patterns required for the casting method. Factors such as design complexity, part size, and material significantly influence these costs. One of the primary advantages of sand casting is its low tooling costs, which enable manufacturers to produce rapid prototypes without incurring high upfront expenses.
To minimize tooling costs, manufacturers can utilize standard mold sizes, simplify part designs, and reuse molds as much as possible. This approach not only reduces expenses but also supports the development of quick prototypes and testing of new designs. Ultimately, low tooling costs empower manufacturers to create custom parts with intricate designs, enhancing their appeal across various industries.
With these advantages, the sand casting method becomes an attractive option for those looking to balance cost and design flexibility in their production needs.
Material Waste
Material scrap in sand casting means scrap material. Variables that impact material waste are the size and complexity of the part, in addition to the expertise of the foundry workers. Reducing material waste is key in sand casting.
Ways to minimize scrap are, for example, designing parts with CAD software to minimize wasted material, using efficient melting and pouring techniques, and recycling any excess material. Reducing material waste is extremely beneficial in sand casting. For one, it cuts down on the amount of material that you have to buy — which can facilitate cost containment.
It further cuts down on waste to be discarded, thus potentially limiting environmental damage. Reducing material waste can assist in enhancing the efficiency of the casting process as a whole, resulting in quicker turnaround and reduced production costs.
Scalability
Sand casting is something you can scale both up and down. What affects scalability is the size and complexity of the part, as well as the foundry’s capacity. There are plenty of advantages to scalable sand casting.
Techniques to scalability ranged from spending on equipment and technology, to efficient workflows and processes to employing skilled foundry workers. The following scenarios are where sand casting is the most cost-effective option:
- Low-volume production runs
- Custom metal parts with intricate designs
- Production of large parts and components
- Prototyping and testing new designs
- Small to medium-sized production runs
Unmatched Material Versatility
We are not limited to certain materials, but can produce parts with a wide range of properties. This process can effectively accommodate the production of parts ranging from just a few ounces to several tons, showcasing its versatility in handling various material quantities.
Sand casting is employed in several industries, such as automotive and aerospace, where particular material characteristics are required to hit performance goals.
Ferrous Metals
Ferrous metals like steel and cast iron are frequently sand cast because of their strength, durability and wear resistance. Thanks to these properties, ferrous metals are perfect for applications involving high loads and stresses.
Take steel, for example, which is commonly used in engine blocks, cylinder heads and gearboxes — applications where its strength and toughness are a must. Ferrous metals have advantages such as high thermal conductivity, magnetism, and corrosion resistance.
They’re a pain to work with, because they have a very high melting point and, naturally, they oxidize. The typical ferrous metals used in sand casting are carbon, alloy steel and cast iron. All of them have their own special characteristics and uses.
Consider, for instance, that carbon steel is commonly utilized in the manufacturing of machine parts, like gears and shafts, owing to its superior strength and affordability. Alloy steel is used in applications that require high strength, toughness and corrosion resistance.
Non-Ferrous Metals
Non-ferrous metals like aluminum, copper, and bronze are extensively sand cast for their corrosion resistance, electrical conductivity, and thermal conductivity characteristics. Non-ferrous metals are perfect for applications requiring lightweight, ductility, and corrosion resistance.
As an example, aluminum is frequently utilized in engine components including pistons and cylinder heads because of its strength-to-weight ratio and corrosion resistance.
|
Metal |
Benefits |
Challenges |
|---|---|---|
|
Ferrous |
High strength, durability, thermal conductivity |
High melting points, potential for oxidation |
|
Non-Ferrous |
Corrosion resistance, electrical conductivity, thermal conductivity |
Higher cost, lower strength than ferrous metals |
High-Temp Alloys
High-temp alloys, including nickel and titanium, are sand cast for components that require extreme temperature resistance, strength and corrosion resistance. These properties make high-temp alloys the perfect fit for aerospace and automotive applications, like engine parts or heat exchangers.
High-temp alloys are incredibly useful for their resistance to corrosion and extreme temperatures.
Need a Low-Cost Metal Prototype Without the High Tooling Expense?
Our platform provides an instant quote for complex metal parts in a wide range of materials, from aluminum to steel, all with the low setup costs and rapid turnaround that sand casting is known for.
Get Your Low-Cost Metal Prototype, Fast.
Design Freedom and Realities
Sand casting provided design freedom: it enabled the production of complex geometries and internal structures that were impractical or impossible to manufacture conventionally. That’s especially helpful for low-cost metal prototyping, in which rapid, facile complex designs can be a big edge.
Design freedom in metal casting is impractical because of the need for molds and patterns, which take a while to make and are expensive. The design freedom and realities of other materials such as plastic and FRP have lower melting points and specific heat, enabling the use of other packaging means.
Complex Geometries
Sand casting can achieve complex geometries, such as internal features and detailed intricacies, resulting in enhanced part performance and minimized material consumption. Design freedom is another large benefit to sand casting, as this manufacturing method enables designers to craft parts with complex geometries and features that would otherwise be impossible or extremely challenging to produce using other methods.
Designing complex shapes can be tricky — it requires custom machines and machines. 3D printing for metal casting can stave off costly and time-consuming machining or CNC milling of molds, cores, and patterns.
The advantages of intricate forms are enhanced component function, less raw material, and more design freedom. Complex geometries bring along with them a requirement for specialized equipment and expertise, as well as increased production costs.
Design considerations for complex geometries include the need for adequate draft angles, fillet radii, and parting lines, as well as the potential for casting defects such as porosity and shrinkage. In scenarios such as aerospace, automotive, and medical applications, complex geometries are necessary.
Surface Finish
Influencing surface finish in sand casting is the type of sand, the moisture content of the sand, and temperature of the molten metal. Surface finish is crucial in product quality, as a smooth surface finish can enhance part performance, minimize wear and tear, and boost aesthetics.
Techniques to achieve desired surface finish include specialized sands, coatings, and surface treatments. Such situations with surface finish being important are where parts are going to be used in high wear and tear applications, like automotive and aerospace.
Dimensional Accuracy
Dimensional accuracy in sand casting is influenced by the sand type, moisture content in the sand, and molten metal temperature. Not to mention that dimensional accuracy is a critical driver of product quality.
Ways to do this include utilizing special sands, coatings, surface treatments, and 3D printing to make accurate molds and patterns.
Beyond the Basics: The Modern Angle
Sand casting certainly hasn’t always been the same throughout history, with radical changes during the Industrial Revolution in the 18th century that brought machine tools and new casting methods. Modern sand casting methods incorporate 3D printing of sand moulds via binder jet or laser sintering, enabling more complexity and accuracy.
Resin bonded sand molds, with their better surface finish and dimensional accuracy, have become an industry standard. Some low-pressure sand casting processes, such as the Cosworth process, make sound castings with better properties.
Hybrid Approaches
Hybrid approaches in sand casting involve integrating conventional techniques with contemporary innovations, including 3D printing and automation. It’s efficient, less labor-intensive and much more consistent from product to product.
However, it’s a challenge, requiring heavy new investments in equipment and training. Typical hybrid techniques for sand casting are the combination of 3D printing with casting, and automated molding and core making. Hybrid approaches are preferable for both complex geometries or where high-volume production is necessary.
Digital Integration
Digital integration in sand casting refers to the application of digital technologies, like CAD and CAM, to streamline the casting process. This has multiple advantages, such as increased accuracy, shorter lead times, and higher productivity.
Digital integration allows for the use of advanced materials and methods, such as ceramic shells, to create premium castings with intricate profiles. Companies like Wefab AI are leveraging digital integration to optimize their manufacturing processes and provide high-quality products to their clients.
Exploiting digital trends like artificial intelligence and machine learning could aid in predicting potential defects and optimizing the casting process.
Some future directions of sand casting technology include:
- Increased use of 3D printing and additive manufacturing
- Integration of automation and robotics in the casting process
- Creation of casting makes and methods of higher quality
- Increased focus on sustainability and environmental responsibility
- Digital twins and simulations to tune casting.
When to Choose Sand Casting
Sand casting is great for low volume production runs because it’s cheap and has very little tooling involved. It is great for large parts and components as it can cast small metal parts to large pieces. Sand casting accommodates complex designs that may include internal features, undercuts, and uneven wall thicknesses.
Whatever the reason, it’s a versatile, economical process, even at low volumes, since tooling costs can be avoided or minimized by 3D sand printing or directly machining the mold.
Over 3D Printing
You’d choose sand casting over 3D printing in cases where you need bigger parts — sand casting can yield parts from just a few inches in diameter to 15+ feet in size. This enables faster turnaround times than other metal manufacturing processes, so it’s a good choice for rapid prototyping.
Sand casting is ideal when tolerance demands are lower, and parts will be machined regardless. Sand casting provides more design and production options than 3D printing, because it can generate intricate shapes, such as internal geometries and channels.
The cost and speed comparisons of sand casting to 3D printing vary because it depends on the project, but sand casting is more economical for higher volumes.
Over CNC Machining
Sand casting is preferred over CNC machining when the parts have complex geometries, such as internal structures, undercuts, or varying wall thicknesses. It’s more economical than CNC machining for bigger parts, since it avoids costly machining processes. This sand casting process is particularly beneficial for producing high-quality metal castings, allowing for rapid prototyping of complex part designs.
Design and production considerations show that the sand molding process is more flexible than CNC machining, because it can form shapes and sizes that would require multiple machinings. To put it in perspective, sand casting can provide quick prototypes sand casting that is about two to three times more efficient than CNC machining.
The speed, cost, and tooling are project-dependent, but with the advantages of the sand casting method, it can be far more cost-effective for larger volumes. This flexibility in the production process highlights the robust manufacturing processes that sand casting offers, making it an attractive option for various projects.
Over Investment Casting
Sand casting is generally chosen over investment casting when parts need to be bigger, since it can create parts of all sizes. It’s much more economical than investment casting at higher volumes, since it doesn’t require costly tooling and patterns.
Sand casting must be better than investment casting in design and production considerations, as it is able to produce complex geometries and sizes without the costly molds.
The decision-making process for choosing sand casting involves considering factors such as part size, complexity, and production volume. Wefab.ai can help with this process by providing expertise and guidance on the most suitable manufacturing method for a given project.
Sand Casting vs. CNC vs. 3D Printing: Which is Best for Your Part?
Our experts can help you compare the trade-offs between sand casting and other methods, ensuring you choose the most cost-effective and efficient path for your specific design complexity, volume, and material requirements.
Get a Free Consultation on Your Metal Manufacturing Process.
Conclusion
Sand casting stands out as a versatile manufacturing process, offering exceptional material flexibility and the ability to produce intricate designs, making it an ideal choice for low-volume production and complex geometries across industries like climate tech, robotics, electric vehicles (EVs), and consumer hardware. By leveraging reusable molds and efficient material use, sand casting enables businesses to reduce production costs, accelerate time-to-market, and meet tight project deadlines without compromising quality. Wefab.ai supports hardware innovators by providing expert guidance and advanced manufacturing services, ensuring optimized workflows, minimized waste, and scalable solutions tailored to unique design challenges. Ready to enhance your production strategy? Visit Wefab.ai and request an instant quote today to take your project to the next level.
Frequently Asked Questions
What is the process of sand casting in metal manufacturing?
Sand casting is a traditional yet effective metal casting process that involves creating a sand mold from a mixture of sand and a binder, pouring molten metal (such as aluminum or steel) into the mold, and allowing it to solidify. This method produces cost-effective prototypes or parts, enabling rapid prototyping for applications in robotics and EVs with complex shapes.
Is sand casting a cost-effective method for manufacturing?
Yes, the sand casting process is highly cost-effective, potentially reducing production costs by up to 50% compared to other methods like die casting. This is largely due to its use of inexpensive sand molds, making it ideal for quick prototypes sand casting in climate tech and consumer hardware projects.
Which materials are most suitable for sand casting processes?
Sand casting accommodates a wide range of metals, including aluminum (for lightweight components), steel (for durability in structural parts), and cast iron (for heavy-duty applications), offering flexibility for diverse manufacturing needs in EV and robotics industries.
How complex can the designs be when using sand casting techniques?
Sand casting, a robust manufacturing process, supports highly complex geometries and shapes, including intricate internal cavities and undercuts, making it ideal for custom parts like engine blocks or sensor housings, provided the design allows for proper sand mold creation and metal flow.
What are the key advantages of modern sand casting methods?
Modern sand casting techniques, including specialized sand casting processes, offer improved accuracy (tolerances up to ±0.5 mm) and faster cycle times through automated mold preparation, enabling efficient production of high-quality metal castings for climate tech and consumer electronics.
Can sand casting be effectively scaled for large production runs?
Yes, the sand casting process can be scaled for large production runs by utilizing automated sand mold systems and multiple molds simultaneously, making it viable for mass-producing complex part designs like battery enclosures or robotic frames while maintaining cost efficiency.
When should manufacturers opt for sand casting for prototyping purposes?
Manufacturers should choose the sand casting process for prototyping when developing low-cost, complex metal prototypes—such as those for EV powertrains or climate tech sensors—where rapid prototyping and design validation are needed early, favoring economical molds over permanent tooling.
