In hardware manufacturing, achieving impeccable welds with exceptional precision is a critical demand, particularly in industries such as aerospace, automotive, and electronics where material integrity is paramount. Tungsten Inert Gas (TIG) welding emerges as an advanced technique, leveraging a tungsten electrode to deliver clean, controlled arcs that excel in joining thin materials like stainless steel and aluminum. This process, enhanced by the use of shielding gases such as argon, ensures welds remain protected from atmospheric contamination, offering unparalleled quality and minimal spatter.
Renowned for its versatility and reliability, TIG welding empowers engineers to meet stringent standards, making it an indispensable tool for crafting robust joints in high-stakes applications. The following sections provide an in-depth exploration of the TIG welding process, essential equipment, inherent advantages and challenges, and expert tips to guide teams in optimizing this technique for their specific manufacturing needs.
What is TIG Welding?

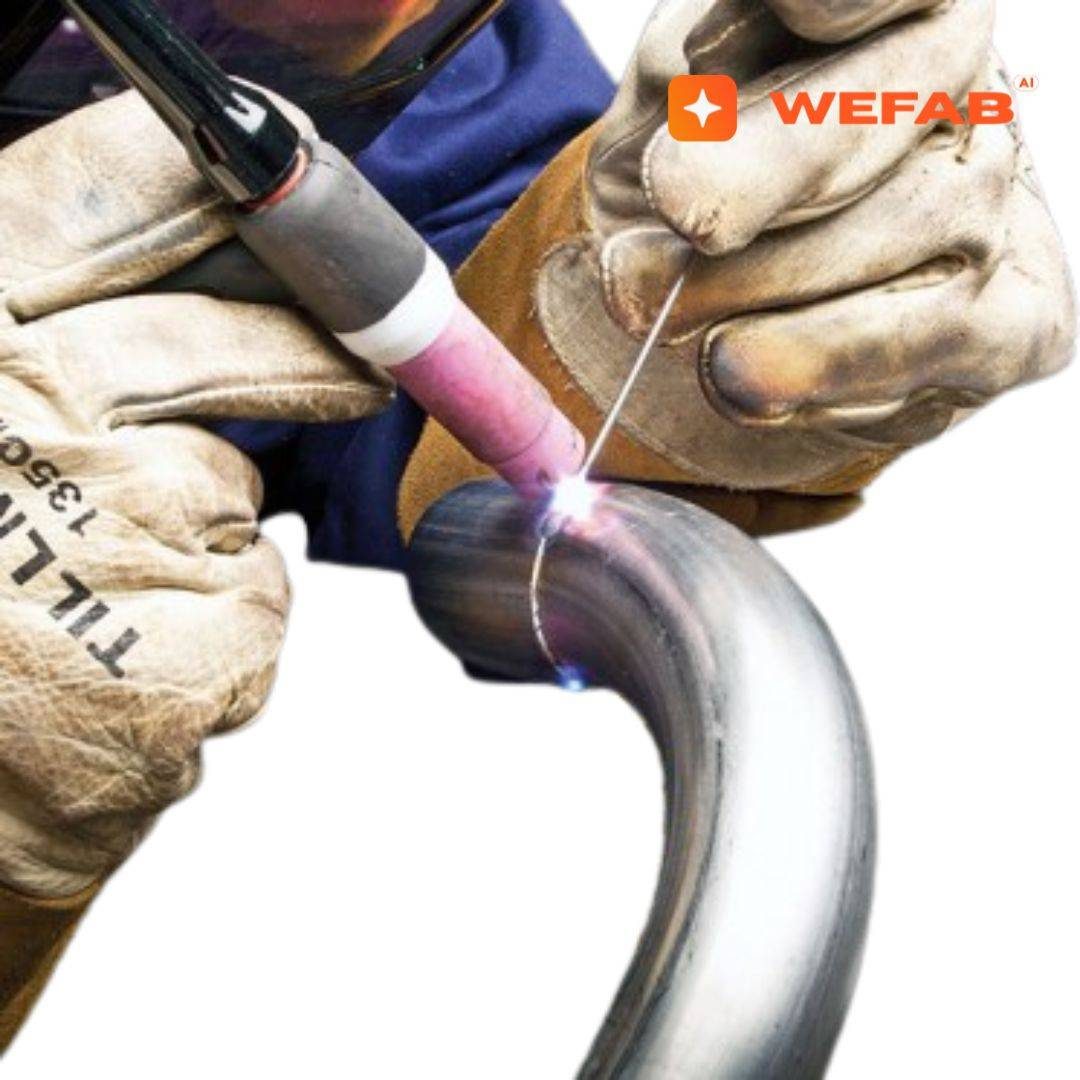

TIG, or Tungsten Inert Gas Welding, is a precision arc welding process that utilizes a non-consumable tungsten electrode to fuse metals effectively. Known for its exceptional capability to create beautiful, high-quality welds, particularly on thin sections of stainless steel and aluminum, the TIG welding application is invaluable in various industries. A shielding gas — usually argon or helium — protects the weld from atmospheric gases that could lead to contamination. Depending on the metal, the TIG welding system uses either DC or AC, providing flexibility for different manufacturing needs.
1. The Core Process
The TIG welding arc is created when an electric current passes from the tungsten electrode to the workpiece, melting the base metal to form a weld. The tungsten electrode never comes into contact with the metal. This isolation is key, avoiding contamination that could compromise the weld.
Tungsten’s melting point is more than 3,400°C, which means it doesn’t melt or degrade under the arc. This is significantly higher than common metals like steel or aluminum, enabling accurate, consistent outcomes. Whether the electrode’s tip is shaped pointed for fine work or rounded for broader arcs, it determines the width of the arc and cone. Playing with this allows welders more control over bead size and penetration.
2. The Tungsten Electrode
TIG welding employs pure tungsten or tungsten alloy electrodes, each designed for specific materials. For instance, thoriated tungsten plays nice with steel, whereas pure tungsten is commonly selected for aluminum. The tip can be ground to a sharp point for DC or a rounded tip for AC welding.
Keeping your electrode clean is crucial for smooth, clean welds. Impurities tend to destabilize the arc or cause defects. Tungsten’s special characteristics maintain a stable arc, crucial for industries like aerospace and automotive where accuracy is a necessity.
3. The Shielding Gas
Inert shielding gas creates a protective cloud over the weld area, keeping out airborne contamination and moisture that can lead to weld defects. Argon is most common due to its stable arc and ease of use and helium for deeper penetration and higher heat for thicker materials.
You have to regulate your gas flow rate. Insufficient gas leaves the weld open. Excess can upset the arc. Choosing the appropriate gas for each material and joint produces the best weld quality and arc stability.
4. The Filler Metal
Filler metal reinforces the weld joint particularly in thicker or high-stress applications. The filler is added by hand, which is a tricky process, since the welder must not touch the tungsten electrode and contaminate the weld.
Sometimes, like when fusing thin stainless sheets together, filler is unnecessary. Some typical filler metals are ER70S-2 for carbon steel and ER4043 for aluminum.
5. The Arc & Puddle
The arc spans the gap between tungsten and metal, producing a molten puddle. This puddle is the essence of TIG welding, because it controls the weld’s profile and penetration.
Arc stability, puddle size and movement all control final weld quality. Things such as current, travel speed and electrode angle get involved. A steady arc yields durable, beautiful welds — essential for many high-tech shops.
TIG Welding Equipment
TIG welding relies on the perfect combination of welding technology, consumables, and safety. By selecting the right TIG welding system and maintaining it in peak condition, the TIG welding process transforms from a technical challenge into tangible benefits–improved weld quality and increased control.
-
- TIG welding equipment consists of a power supply, torch, shielding gas source and regulator.
-
- Tungsten electrodes (pure or oxide-alloyed) provide arc stability and resist erosion.
-
- With shielding gases (argon, helium, or mixes) that keep out air and its defects.
-
- Filler rods, matched to base metals, are hand-fed for strong, clean joints.
-
- Extras such as foot pedals, cooling systems, and gas lenses enhance control and maintain coolness in extended welds.
-
- Maintenance (cleaning torches, checking cables, replacing worn parts) maintains precision and adds years to the equipment’s lifespan.
The Machine
Performance depends on features such as high-frequency arc starts, adjustable post-flow and pulse controls. These functionalities eliminate arc wander, decrease contamination, and help manage heat input. Amperage control is key, the ability to adjust current (usually mid-weld, via foot pedal) provides exact heat control.
This is particularly true for thin sections or materials susceptible to distortion.
AC and DC machines fulfill different requirements. DC is the norm for steel, copper, and titanium. AC is required for aluminum and magnesium, it knocks off oxide layers and provides a clean fusion. Inverter-based machines are notable for their lighter weight, energy savings and rapid response to changes in amperage. These units are beloved in today’s shop for their versatility and quickness, a godsend for work with constant material or parameter changes.
The Torch
A TIG torch isn’t just a handle — it’s the tungsten electrode, collet, collet body, gas nozzle and torch head. All of them assist forming and stabilizing the arc. Torch size counts—air-cooled for small work, water-cooled big enough to take high currents without burning up. Selecting the appropriate torch is all about alignment between cooling, amperage, and reach to the work.
Torch angle (roughly 10–15 degrees off vertical) and fluid motion maintain welds free of impurities and imperfections. Collets and nozzles, switchable for various tungsten diameters and gas flows, maintain the arc steady and shield gas concentrated—a necessity for high-grade output.
Safety Gear
-
- Welding helmet with auto-darkening lens: shields eyes from UV and IR.
-
- Flame-resistant gloves: protect hands from heat and sparks.
-
- Long-sleeved, flame-retardant jacket: prevents skin exposure.
-
- Safety shoes: guard feet against hot metal and falls.
-
- Respirator or fume extractor: essential in confined or poorly ventilated spaces.
Well-ventilated workspaces are essential for safe tig welding applications, preventing gas buildup and fume inhalation. Additionally, flame-resistant clothing protects from burns, ensuring that skilled tig welders adhere to safety protocols and maintain clear emergency exits.
Struggling with Precision Welding Challenges?
Enhance your TIG welding efficiency with Wefab.ai’s expert solutions, offering advanced equipment support, optimized techniques, and reduced lead times for high-quality welds on thin metals and intricate designs.
Connect with Wefab.ai Today to Improve Your Fabrication Process!
Why Choose TIG Welding?
TIG welding represents the pinnacle in contemporary fabrication, showcasing an effective TIG welding application that combines precision, versatility, and aesthetics. For precision hardware, sustainability-minded businesses, TIG welding truly shines with its ability to deliver high-quality welds for a wide range of uses.
-
Allows for precise control for welding thin and delicate materials, minimizing the risk of burn-through.
-
Aesthetically pleasing, clean welds — known as a “stack of dimes.
-
Flexibility to weld a wide variety of metals and alloys.
-
Less spatter and slag, keeping cleaner safer work areas.
-
Low heat input, limiting distortion and preserving material properties.
-
Reusable non-consumable tungsten electrode for cost efficiency.
-
Capable of welding in various positions such as overhead and vertical.
-
Minimizes post-weld finishing, which saves you time and money.
Unmatched Precision
TIG welding provides operators with the flexibility to achieve precision tight tolerances and craft intricate designs — which is critical for industries such as electronics and medical devices. This lets you make live manual adjustments to current, filler, and arc position — yielding welds of precision fit. Such accuracy requires significant skill, particularly in controlling the arc to produce an even bead.
In sectors such as aerospace, energy, and robotics, this level of control guarantees dependability where part malfunction isn’t acceptable. It’s the versatility to weld small, intricate parts that lends TIG welding its special place in high-tech production pipelines.
Superior Aesthetics
TIG welds are famous for their consistent, ridged ‘stack of dimes’ look. The precise heat input and slow cooling rate contribute to smooth, bright seams that are easy to grind or polish.
This diminished finishing work is more than aesthetic. When it comes to cars, exotic machines, and sculptures, appearance counts. TIG welding’s capacity to produce sturdy, beautiful welds enhances brand equity and consumer loyalty.
Material Versatility
-
- Stainless steel
-
- Aluminum and its alloys
-
- Titanium
-
- Copper and brass
-
- Nickel alloys
-
- Magnesium
TIG welding can join dissimilar metals, providing manufacturers with versatility in both form and function. The effective TIG welding process is crucial in aerospace, where welding titanium and aluminum reliably is vital. This TIG welding application deals with both thin sheets and thick plates, flexing to each mission’s requirements.
Cleaner Welds
TIG welding produces less spatter and slag than most welding techniques. Less cleanup = less risk of defects and better weld integrity.
A clean shop is essential to clean welds. This reduces contamination and increases strength.
Cleaner welds help meet strict standards.
TIG vs. Other Processes
TIG welding distinguishes itself for its precision, control, and finish, making it an effective TIG welding application in climate tech, EVs, and robotics where material mix, thickness, and finish all play a role. Understanding how TIG welding processes stack up against other welding methods is crucial for procurement and production leads.
|
Feature / Process |
TIG Welding |
MIG Welding |
|---|---|---|
|
Electrode |
Non-consumable tungsten |
Consumable wire |
|
Shielding Gas |
100% Argon |
Argon/CO₂ blend |
|
Skill Required |
High |
Moderate |
|
Precision |
High |
Moderate |
|
Material Suitability |
Thin metals, alloys |
Thicker metals |
|
Appearance |
Clean, refined |
Less refined |
|
Speed |
Slower |
Faster |
|
Typical Flow Rate |
15–25 ft³/hr |
35–50 ft³/hr |
Compared to MIG
TIG welding utilizes a non-consumable tungsten electrode, while MIG employs a consumable wire fed into the weld. This fundamental distinction transforms both the welding process and outcomes. TIG requires two hands — one for the TIG welding torch and one for the filler rod — whereas MIG is one-handed, as the welding machine feeds wire automatically.
TIG welds exhibit a cleaner, more polished finish, making them ideal for industries that demand high quality welds, such as EV battery housings or robotics arms. The effective TIG welding process provides a premium appearance and reduced rework. While MIG welds are solid, they usually require additional grinding or finishing to achieve the desired look.
TIG welding is intricate, necessitating skilled TIG welders. In contrast, MIG is simpler to learn, making it valuable for high-volume, less specialized settings. Thus, TIG is slower but yields superior results for mission-critical assemblies.
For thin stainless, aluminum or magnesium like you’d typically see in battery enclosures or heat exchangers, TIG beats MIG. MIG is great for thick steel frames or large, beefy, structural welds.
Compared to Stick
|
Feature / Process |
TIG Welding |
Stick Welding |
|---|---|---|
|
Electrode |
Tungsten (non-consumable) |
Consumable stick |
|
Material Range |
Wide, inc. magnesium, aluminum |
Mostly steel, iron |
|
Weld Quality |
High, clean |
Moderate, more spatter |
|
Shielding Gas |
Argon |
None (flux coating) |
TIG welds far better looking, with less spatter and a smooth bead. Stick welds get the job done but are crude and typically require clean-up, rendering them unsuitable for cosmetic or high-integrity joints.
TIG dazzles with a lot of materials—magnesium, aluminum, stainless—while stick pretty much only works with ferrous metals. If your project requires versatility or an alloy range, TIG provides.
Precision parts, thin-wall tubes and visible welds in robotics or consumer tech all benefit from TIG. Stick is the best when speed and ruggedness are more important than finish.
TIG: clean, flexible, slow. Stick: tough, quick, rough.
Beyond the Basics
TIG welding reigns in the world of precision engineering, particularly where clean, strong welds are paramount—like aerospace, EV’s, and robotics. Mastering advanced TIG welding processes can translate hard production constraints into actual improvements in speed, quality, and control. Fine-tuning polarity, puddle control, and advanced methods with a TIG welder machine yields superior results for teams requiring strength and visual finish. These are skills that are important in sectors that rely on low-defect rates and clean joints, such as climate tech and automation.
Polarity Settings
Polarity in TIG welding is a hidden but important part of weld quality, particularly when using a TIG welding system for dissimilar metals. Direct current electrode negative (DCEN) is the default for most TIG work, providing deep penetration and a steady arc—perfect for steel and stainless steels. DCEP, meanwhile, is rarely used in TIG due to its rapid electrode consumption, but it can be helpful for unique surface cleaning on metals such as aluminum.
AC is our preferred option for aluminum and magnesium because it strikes a balance between arc cleaning and robust welds. Polarity alters heat transfer, impacting everything from the weld pool penetration to bead aesthetics. By knowing when to deploy DCEN or AC, skilled TIG welders can reduce rework and increase throughput, particularly when performing high-spec work such as battery casing or robotic arms.
Puddle Manipulation
Excellent TIG welding processes begin with excellent puddle control, something you learn through a combination of practice and solid technique. Controlling puddle size—roughly 0.5 cm wide—is crucial for keeping welds tight and defect-free.
The shape of the puddle informs you about heat balance and penetration; a nice, round, clear puddle is an indicator of good control and even heat. Manipulating torch angle and travel speed allows you to control heat input, which is crucial for thin metals like auto body repairs or precision robotics. The properly shaped electrode tip—sharp, approximately 5 to 6 mm long—enhances arc focus, allowing easier puddle guidance. Mastery here shines in industries such as aerospace, where even minor imperfections can translate to large consequences.
Advanced Techniques
Advanced TIG techniques, such as pulse welding and orbital welding, take quality and repeatability even further in the TIG welding application. Pulse welding allows you to adjust the current rapidly, reducing heat-affected zones and increasing control on thin or heat-sensitive components – critical in EV battery packs and powertrains. Orbital welding enables automated, repeatable joints on tubes and round components — minimizing human error.
These high-level techniques require continuous practice and interest as new alloys and designs emerge constantly. Skilled TIG welders who stay current with these trends differentiate themselves in competitive industries, unlocking new job or project avenues as the tech landscape changes. At Wefab AI, for example, blending these techniques with AI-powered quality checks cuts defects and shortens lead times across
Practical Advantages
-
- TIG’s inert gas shield reduces oxidation, making it a favorite for precision builds.
-
- Combining argon with hydrogen reduces heat-affected zones and increases weld cleanliness.
-
- TIG is slower than MIG but takes the crown for control and low-defect rates.
- The result is higher quality in high-mix, low-volume parts.
Need Expert Support for TIG Welding Projects?
Partner with Wefab.ai’s manufacturing experts, providing tailored guidance, safety protocols, and advanced TIG techniques to ensure precision, quality, and efficiency across your welding and sheet metal operations.
Engage with Wefab.ai Today to Elevate Your Welding and Fabrication Standards!
Conclusion
TIG welding offers significant advantages to manufacturing shops and teams, delivering clean, robust welds that meet the exacting standards of industries requiring high precision. However, professionals often face substantial challenges, including a scarcity of skilled labor, complex configurations that lead to delays, and issues such as imperfect seams or compromised joint strength, which can elevate costs and impede productivity. The integration of innovative technologies and optimized setups now enables welders to achieve superior outcomes, facilitating faster project completion, reduced material waste, and a more streamlined workflow from initiation to completion.
Renowned for its exceptional performance on thin metals and intricate designs, TIG welding remains a preferred choice for fabricators addressing projects with stringent specifications. To consistently meet these demanding requirements while maintaining cost efficiency, teams benefit from partnering with an industry-expert manufacturer. Ready to elevate your welding and fabrication capabilities? Explore Wefab.ai’s comprehensive solutions for various welding processes and sheet metal work to enhance your operational success.
