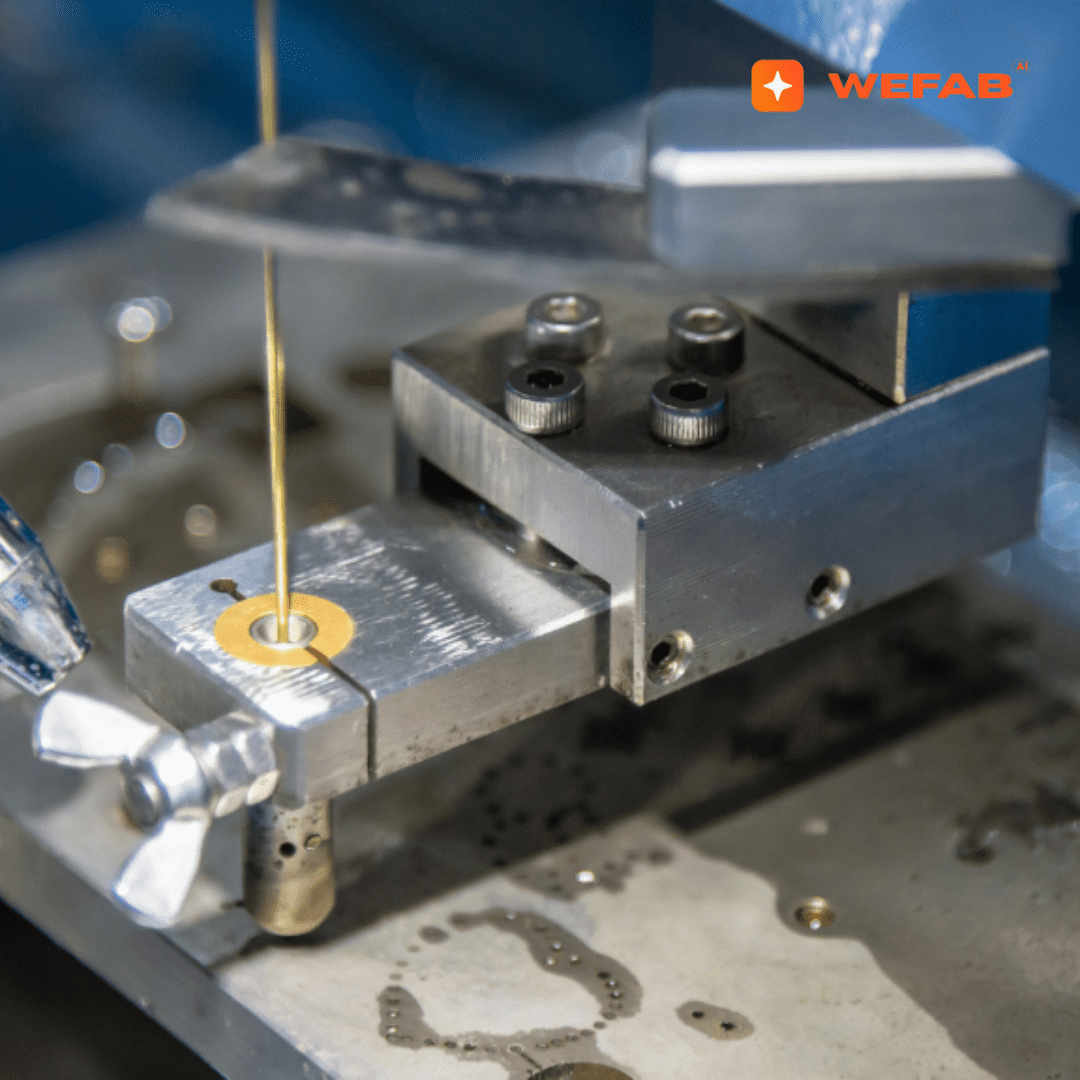

Wire EDM machining emerges as a critical solution for hardware teams seeking high-precision metal components, offering unparalleled accuracy for intricate parts essential in climate technology, robotics, and electric vehicle (EV) sectors. The demand for tight tolerances and rapid adaptability often challenges teams, particularly startups and mid-sized firms, where extended lead times—sometimes stretching 20-30% beyond projections—and rising costs for small, complex components can disrupt schedules and inflate budgets by 10-15%.
These hurdles can impede progress, jeopardize launch timelines, and hinder the ability to scale innovative technologies. By partnering with reliable experts specializing in high-mix, low-volume production, teams can overcome these obstacles. The following sections will explore cutting-edge strategies to enhance wire EDM machining efficiency, enabling hardware teams to maintain competitiveness and achieve superior precision in their projects.
The Precision Imperative: Why Is Achieving Tight Tolerances Critical in Modern Industries?
Precision is not merely a pursuit in high-tech fabrication, it’s a mandate. The push for ever-tighter tolerances in sectors such as climate tech, robotics, and EV manufacturing has turned wire EDM into a crucial technology for manufacturing complex metal components. High precision implies less waste, fewer failures, and better long-term performance.
This precision imperative is now fueling innovation throughout the supply chain.
-
Keeping tight tolerances (+/- 0.012mm) is essential for optimized fit/function and product safety.
-
With accuracy (0.001mm) and repeatability (0.002mm) in machining, every batch is guaranteed consistent quality.
-
Intricate machinery depends on accurate parts to avoid expensive alignment or fit problems.
-
Specialized tools, like thin wires (0.02–0.33mm), enable engineers to cut sharp corners and small internal features.
-
Sophisticated controls and dielectric fluids are needed to confine spark gaps and avoid miscues.
Design Complexity
Designs with multiple tight radii, thin walls or internal corners stretch the bounds of traditional machining. Conventional milling and turning have a hard time with fine features — resulting in quality problems or scrap.
Wire EDM, however, can cut shapes you can’t otherwise, by virtue of being able to use thin wires and servo controls. Design intricacy tends to imply additional processes and extended lead-times if conventional techniques fail to satisfy demanding tolerances.
For instance, manufacturing a micro-robotic gripper or a connector with a high pin density can be unfeasible or too expensive with conventional CNC. Wire EDM transforms these challenges into true opportunities for innovation by creating new design freedom.
- Intricate lattice structures in lightweight aerospace brackets.
- Fine gear teeth in microactuators.
- Medical implants with custom-shaped internal channels.
- Sensor housings with multiple sharp internal edges.
Material Constraints
In the world of precision, what you make it out of is as important as what you make it. Certain metals, such as tool steels or titanium, are tough to machine with standard tools because of hardness or thermal properties.
Wire EDM is particularly valuable in this context because it can slice any conductive material, no matter how hard, without inducing mechanical stresses. Works such as aluminum or copper, that are susceptible to burrs or deformation from a conventional tool, see advantage from EDM’s non-contact process.
Choosing the correct metal is essential for ensuring both the necessary mechanical properties and the tolerances. In sectors in which performance relies on impeccable components, such as medical or EV, the capacity to work with challenging/sensitive materials is an obvious benefit.
Conductive materials are required for wire EDM, so it’s perfect for a lot of metals and not ceramics or plastics.
Tolerance Stacking
Tolerance stacking is the accumulation of variation in an assembly of multiple parts. Even small errors in each component can accumulate, impacting the entire system’s operation. In robotics and EV, this can mean misaligned axes or unreliable connectors.
EDM precision machining holds every part in tolerance, minimizing dangers during assembly. That can only be done with precise process control, precise equipment, and precise operators. For hardware start-ups, this saves cost and time by reducing rework or scrapped parts.
- Use statistical process control.
- Rely on advanced metrology tools.
- Choose precision fixtures.
- Design for manufacturability.
Surface Integrity
Surface integrity is often overlooked, but it matters for friction, wear, and fatigue in moving parts. EDM yields excellent surface finishes and doesn’t induce mechanical stresses, perfect for precision applications.
Bad surface finish can make gears, bearings, or seals fail. To minimize defects, use top-notch dielectric fluids, maintain spotless work areas, and establish the best cutting parameters. These steps help guarantee that even the trickiest shapes achieve geometric and surface finish targets.
Facing Delays with Precision Metal Parts?
Improve your process with Wefab’s wire EDM expertise, reducing costs by 15% and accelerating production with high-quality results.
Submit Your Project Today to Enhance Efficiency!
Why Conventional Machining Fails
Most traditional machining, such as milling and turning, fare well for standard metalworking, but reveal actual limitations with high-precision work. Their tool-centric method causes them to struggle with tool wear, mechanical stress and heat warping. For industries requiring perfect precision and small tolerances, these boundaries can impede production, increase costs, and decrease quality.
The accompanying table summarizes these challenges.
|
Challenge |
Limitation Example |
Practical Impact |
|---|---|---|
|
Tool Wear |
Tools lose sharpness with use, need replacements |
Inaccurate parts, downtime, higher costs |
|
Mechanical Stress |
Cutting force bends or distorts thin or intricate parts |
Part deformation, failed quality checks |
|
Heat Distortion |
Friction heats workpiece, causing expansion or warping |
Dimensional errors, poor surface finish |
|
Geometric Limits |
Round tools leave radiused corners, struggle with sharp internal cuts |
Can’t make sharp corners or complex shapes |
Tool Wear
Tool wear is a never-ending font of errors in conventional machining. With every pass, cutting edges get dull, causing parts to go out of spec.
When tools wear out fast, production slows down. Operators halt machines frequently to exchange tools or re-calibrate. This nibbles at uptime and drives costs up.
Shops use coatings, better tool materials, and optimized feeds to slow wear, but these only help for so long. Once a tool loses its edge, part quality drops fast.
There’s a direct relationship between tool wear and cost. More wear = more blown parts and labor and costly tools. For high-mix, low-volume runs, this can crush margins.
Mechanical Stress
Mechanical stress is an immense threat when cutting. Tool force can bend thin walls or small features. This manifests itself as warped or out-of-tolerance parts.
For precision parts, even minor stress can move a part’s critical dimensions. Extra passes or deeper cuts exacerbate this. Most setups require tender fixturing and slow feeds to maintain parts in tolerance.
With proper speeds, feeds and tool paths you can reduce mechanical stress. Yet these optimizations can bog down tasks or require expensive custom tooling.
Heat Distortion
Heat from cutting alters the workpiece. If the part gets too hot, it will swell or warp and mess up the final dimensions.
Thermal expansion is tough to estimate, particularly in deep cuts or thick blocks. Small mistakes accumulate quickly in tight-tolerance components.
Shops employ coolants, mist sprays, and air blasts to prevent things from getting too hot. Some metals tolerate heat better, but not every job can change grades.
Geometric Limits
Traditional machines can’t cut sharp internal corners. A round tool never leaves a point but a curve.
Which is to say complex shapes, deep cavities and fine details are hard or impossible. Long, thin tools can reach deep but will flex or deflect, damaging precision.
Advanced techniques such as wire EDM eliminate these constraints. They can produce sharp corners, tight slots, and intricate profiles easily.
How Does Wire EDM Technology Unlock Unprecedented Accuracy in Manufacturing?
Wire EDM machining was, and still is, the best way to make a high precision part. It provides hardware teams with the means to address ancient issues with fresh innovation. Using spark erosion, a thin wire slices shapes with minimal waste and zero tool pressure. Hence, wire EDM is perfect for complex patterns in conductive metals.
It works irrespective of hardness — whether you’re working Inconel or standard tool steels — and provides edge quality with virtually no burrs and a kerf width of merely 0.1-0.3 mm.
1. The Spark Erosion Principle
Spark erosion is the essence of wire EDM. It utilizes controlled electric discharges between a wire and the part, melting and vaporizing microscopic bits of metal. There’s no mechanical contact, which means no tool wear or mechanical push on the workpiece.
This technique enables wire EDM to handle tight corners and delicate features, particularly when wires as thin as 0.05 mm (.002”) are employed. This action provides a smooth finish, with the dielectric fluid rapidly removing sludge.
This can be the key to obtaining repeatable results in small, complex parts where other methods could leave burrs or distortions.
2. Sub-Micron Positional Control
Wire EDM machines utilize sophisticated motion systems that maintain the wire’s position to within sub-micron tolerances. Linear motors and glass scales enable operators to prepare for straight lines, tight radii, and sharp inside corners with no drift.
This ability to have high positional control is a game changer in fields like medical devices, aerospace, and microelectronics, where the slightest error can mean a failed part. With tolerances down to ±0.0025 mm, the process backs the most stringent specs and lets teams vie on quality in international supply chains.
This accuracy is key not only for prototypes but for scaling production of mission-critical pieces.
3. No-Contact Machining
Wire never touches the part. No-contact machining means there’s no danger of contorting thin walls or fragile details.
It provides obvious advantages for heat-sensitive alloys and delicate workpieces, since there’s virtually no mechanical force or heat-affected zone. This aids medical, EV, and electronics sectors, where material stress can cause hidden failures.
Wire EDM offers a safer, more precise method to cut intricate patterns.
4. Consistent Wire Electrode
Maintaining a steady wire of the appropriate material and diameter is what allows for consistent cuts. Wire quality impacts each stage. Cheap wire snaps or burns unevenly, while premium wires provide smooth, repeatable results.
Selecting diameter—up to 0.05 mm—is crucial for fine detail. New wire tech, like coated wires, take that even further by ramping up speed and accuracy.
5. Dielectric Fluid Dynamics
Dielectric fluid is not just coolant; it sweeps away debris and extinguishes stray sparks. Clean fluid cuts sharp, no arcing. The proper flow increases both cutting speed and surface finish.
New fluid chemistries reduce waste and expense, helping to enable green manufacturing objectives.
Need Help with Complex Metal Components?
Partner with Wefab’s experts to optimize your manufacturing, cutting lead times by 20% with precise wire EDM solutions.
Schedule a Consultation Today to Boost Precision!
Beyond Geometry: How Does Wire EDM Contribute to Overall Manufacturing Efficiency and Versatility?
Wire EDM technology excels at tackling the more hard-core problems in contemporary manufacturing. Its influence extends well past simple geometric slicing, delivering real-world advantages in precision, efficiency, and substrate versatility for sectors where minor mistakes or bottlenecks equal lost profits or regulatory liability.
Superior Surface Finish
Wire electrical discharge machining (wire EDM) provides ultra-fine surface finishes, achieving levels as low as 3 microinches (Ra). This precision goes beyond traditional machining processes, where friction and deformation can hinder the smoothing of a part. In industries like EV and robotics, a fine surface finish directly influences part life, sealing, wear, and energy efficiency.
A slick surface from the wire EDM process aids in parts mating, reduces friction, and minimizes post-processing needs. In moving assemblies, the absence of abrasiveness significantly lowers wear and the risk of leaks or misalignment. Fine finishes also enable closer tolerances and greater precision, essential for climate tech and high-end consumer products.
- Multiple skim cuts for improved finish
- Low wire tension to minimize marks
- Pulse control for consistent erosion
- Deionized water to clean debris
For supply chain leads, these benefits translate to less quality holds and rework, and design teams get the peace of mind that assembly and function will remain in spec.
Complex Internal Features
Wire EDM machines can slice internal shapes too complex to mill or turn, or hard or impossible to reach. The ultra-thin wire—0.02 mm—allows us to fabricate sharp corners, narrow slots and deep channels in a part. This versatility is crucial for components such as sensor enclosures, tailored heat exchangers, or microfluidics.
Most precision parts require cavities on the inside or channels that shape fluid, house electronics or moving components. With wire EDM, those designs don’t have to make concessions. It can generate hollow portions and serpentine conduits with precision to ±0.0002 inches, even on delicate or tiny pieces. This gives teams true design freedom to build lighter, smarter systems.
Machining Exotic Alloys
Wire EDM shines with tough or heat-resistant alloys. It can cut steels, titanium, Inconel and other materials that traditional tools have difficulty with. There’s no tool stress, so even hard, brittle or thermally sensitive components remain unharmed.
This provides an important advantage to sectors such as aerospace or medical devices, where material selection is vital. With wire EDM, engineers can employ exotic alloys without sacrifice. Real-world projects range from turbine blades out of nickel superalloys to bespoke EV connectors from copper-tungsten. Wire EDM takes care of them, maintaining tight tolerances and clean surfaces.
Burr-Free Components
Wire EDM inherently produces minimal burrs due to its spark erosion nature—no mechanical cutting edge, no raised edges. This burr-free finish is a big victory for assembly and function — sharp edges or debris can cause jams or shorts.
- Clean, burr-free surfaces reduce assembly time
- Fewer secondary finishing steps needed
- Lower defect rates in tight-tolerance assemblies
- Improves performance in micro and high-speed parts
For purchasing and QA, less burr equals less headaches and quicker construction.
The Sourcing and Verification Hurdle
Sourcing partners for wire electrical discharge machining pose special hurdles for sourcing teams. This is not a job for just any tech; the wire EDM process requires a depth of experience with tight tolerances, complex geometries, and an array of alloys. Every project—prototype or full-scale run—requires a source chain that can provide repeatability and quality.
Finding Expertise
Finding reputable wire EDM partners goes beyond mere capacity. Companies with long track records in high-mix, low-volume runs, particularly with expertise in areas such as robotics or EVs, tend to produce superior outcomes.
Deep technical know-how, such as how wire diameter from 0.10 mm to 0.25 mm affects cut-quality for various metals and configurations, is crucial. Word of mouth and firsthand recommendations from trusted industry sources go a long way toward cutting down options.
On-site visits or factory walk-throughs, if possible, offer additional confidence in the capabilities of potential partners.
Validating Capabilities
Checking a supplier’s capabilities is more than a tick box. It involves reviewing their precision work case studies on specialty projects—like fine detail cuts or heavy component processing.
Request proof of ISO 9001 or IATF 16949 certifications—these indicate a mature quality system. Evaluate their inspection equipment and software as well.
ALWAYS run a pilot batch with your material and specs before a full commitment—this is where you discover those hidden gaps in process control or material handling.
Ensuring Quality
Wire EDM demands an uncompromising quality system. Your typical laser melts or vaporizes material, and in doing so, produces very small chips rather than sawdust, so regulating spark energy and wire trajectory is imperative.
When machining taller features, excess force can damage surface finish, which makes real-time monitoring critical for reliable results.
Managing Costs
|
Strategy |
Approach |
Benefit |
|---|---|---|
|
Batch planning |
Group similar jobs |
Lower setup costs |
|
Supplier transparency |
Require itemized quotes |
Predictable pricing |
|
Total cost analysis |
Compare lifetime costs, not just unit price |
Fewer surprises |
|
Invest in expertise |
Choose skilled partners |
Lower scrap and rework |
Investing in expertise up front translates to less flub and glubb during audits down the line. Premium wire EDM cuts can be pricier per part, but they minimize scrap and accelerate time to market.
Transparent pricing models, with clear breakouts of labor, wire type, and post-processing, help avoid disputes and build trust.
Streamlining Your Supply Chain For Precision Parts Manufacturing
Precision parts manufacturing demands a streamlined supply chain, especially as hardware designs grow more intricate and timelines tighten. Wire electrical discharge machining excels at cutting hard metals and delivering tight-tolerance parts with consistent repeatability. When paired with a supply chain focused on speed, cost control, and clear oversight, the wire EDM process becomes a game-changer for hardware teams. Managing these needs across multiple vendors or in-house often leads to delays and inefficiencies, making a unified approach essential.
For industries like EV and climate tech, where quality and timing are non-negotiable, a streamlined supply chain with wire EDM technology offers significant advantages. It simplifies production by handling complex cuts in a single step, reducing the need for additional processes. This not only saves time but also ensures parts meet exact specifications, supporting faster launches and reliable outcomes.
Key Benefits of Wire EDM in a Streamlined Supply Chain
- Single-Step Precision: Wire EDM performs intricate cuts like custom steel gears for robotics in one go, eliminating extra machining steps.
- Faster Turnaround: Cutting out intermediary processes shortens lead times, crucial for meeting tight project deadlines.
- Cost Savings: Fewer production stages reduce overall expenses, benefiting budget-conscious teams.
- Unified Management: One dedicated team oversees sourcing, quality, and logistics, simplifying coordination.
- Wefab’s Manufacturing Edge: As an AI-first manufacturer, Wefab optimizes production with advanced techniques, reducing lead times and costs through in-house expertise.
- Automated Design Validation: AI-driven checks identify CAD file issues early, preventing production errors.
- Live Progress Updates: Real-time dashboards track part progress, offering global teams enhanced visibility.
- Proactive Risk Mitigation: Predictive tools flag potential delays or quality issues, allowing timely interventions without constant oversight.
Conclusion
Wire EDM machining offers a powerful approach to enhancing high-precision manufacturing, addressing key challenges faced by hardware teams in climate technology, robotics, and electric vehicle (EV) sectors, where missed specifications, lead times extended by 20-30%, and material waste can inflate costs by 10-15% and delay project timelines. This technique provides exceptional accuracy, significantly reducing scrap rates and helping teams meet stringent quality standards and deadlines. By partnering with a reliable manufacturer like Wefab, teams gain access to streamlined sourcing and transparent production processes, which mitigate risks and improve operational efficiency by up to 25%.
As an AI-first manufacturer, Wefab harnesses advanced wire EDM capabilities to deliver consistent, high-quality outcomes, empowering teams to navigate traditional bottlenecks with greater confidence. Ready to elevate your precision manufacturing? Visit Wefab.ai and request an instant quote today to experience improved efficiency and reliability.
Frequently Asked Questions
What makes wire EDM machining more precise than conventional methods?
Wire electrical discharge machining (wire EDM) employs an electrically charged wire to slice through materials with unparalleled precision, typically achieving tolerances within ±2 micrometers. This process neutralizes mechanical stress, creating razor-sharp edges and fine features that traditional machining methods can’t match.
Which materials are best suited for wire EDM machining?
Wire electrical discharge machining (wire EDM) is perfect for hard conductors like tool steel, titanium, carbide, and superalloys. This EDM process is particularly useful for parts that are too hard or complicated for traditional machining methods.
How does wire EDM machining support complex geometries?
Wire electrical discharge machining (wire EDM) cuts intricate shapes, tight radii, and internal corners with excellent repeatability. Its non-contact nature allows the wire EDM process to produce features that would be impossible or expensive to generate with traditional machining methods.
What are the main advantages of wire EDM beyond precision?
In addition to precision, wire electrical discharge machining (wire EDM) delivers low material wastage, zero tool wear, and the capacity to machine hardened materials, enhancing machining accuracy and efficiency while providing burr-free finishes.
How does wire EDM improve supply chain reliability?
Wire electrical discharge machining (wire EDM) significantly compresses lead times by facilitating quick-turn prototyping and low-volume production. With offerings such as Wefab.ai, businesses can accelerate sourcing, get verified parts in a matter of days, and uphold quality standards in distributed manufacturing ecosystems.
What are the key requirements for sourcing wire EDM components?
To begin with, suppliers need up-to-date electrical discharge machining (EDM) machines, skilled operators, and strong QC. Material verification and tight tolerance adherence guarantee consistent, reliable parts for critical EDM applications.
How do manufacturers verify the quality of wire EDM parts?
We verify quality with state-of-the-art metrology tools, including coordinate measuring machines (CMM) and optical inspection, ensuring that every component complies with rigorous industry specifications for electrical discharge machining.
Can wire EDM machining reduce overall manufacturing costs?
Yes, through reduced material waste, no secondary finishing, and allowing complex parts to be manufactured efficiently, wire electrical discharge machining (wire EDM) can significantly reduce overall manufacturing costs.
