CNC machining method is a way to make parts by using computer-controlled tools that cut and shape raw materials. CNC, which stands for Computer Numerical Control, allows businesses to create intricate forms with stringent tolerance, high repeatability and rapid speed. Shops employ it for metals, plastics and even composites.
In climate tech, robotics and EV sectors, CNC machining provides teams a means to obtain prototypes and production parts with great surface finish and solid mechanical properties. A lot choose CNC for custom, low-volume or high-volume runs.
To achieve high quality and green compliance, some equipos pair CNC with AI-based systems for improved yield and reduced errors. The following sections provide important notes and advice for working effectively with CNC machining.
Foundational CNC Machining Methods
CNC machining employs computer-controlled machines and tools to shape raw stock into accurate, bespoke components. They transformed from humble numerical control (NC) systems with punched tape cards to today’s AI-infused environments.
Milling, turning, and drilling, for example, each contribute unique strengths to manufacturing, enabling teams to address even the most complex project specifications consistently and at scale.
|
Method |
Key Characteristics |
Typical Applications |
|---|---|---|
|
Milling |
Multi-axis, complex shapes, high detail |
Enclosures, brackets, housings |
|
Turning |
Rotational, ideal for round parts |
Shafts, bushings, connectors |
|
Drilling |
Focused on holes, features, tapping |
Flanges, plates, panels |

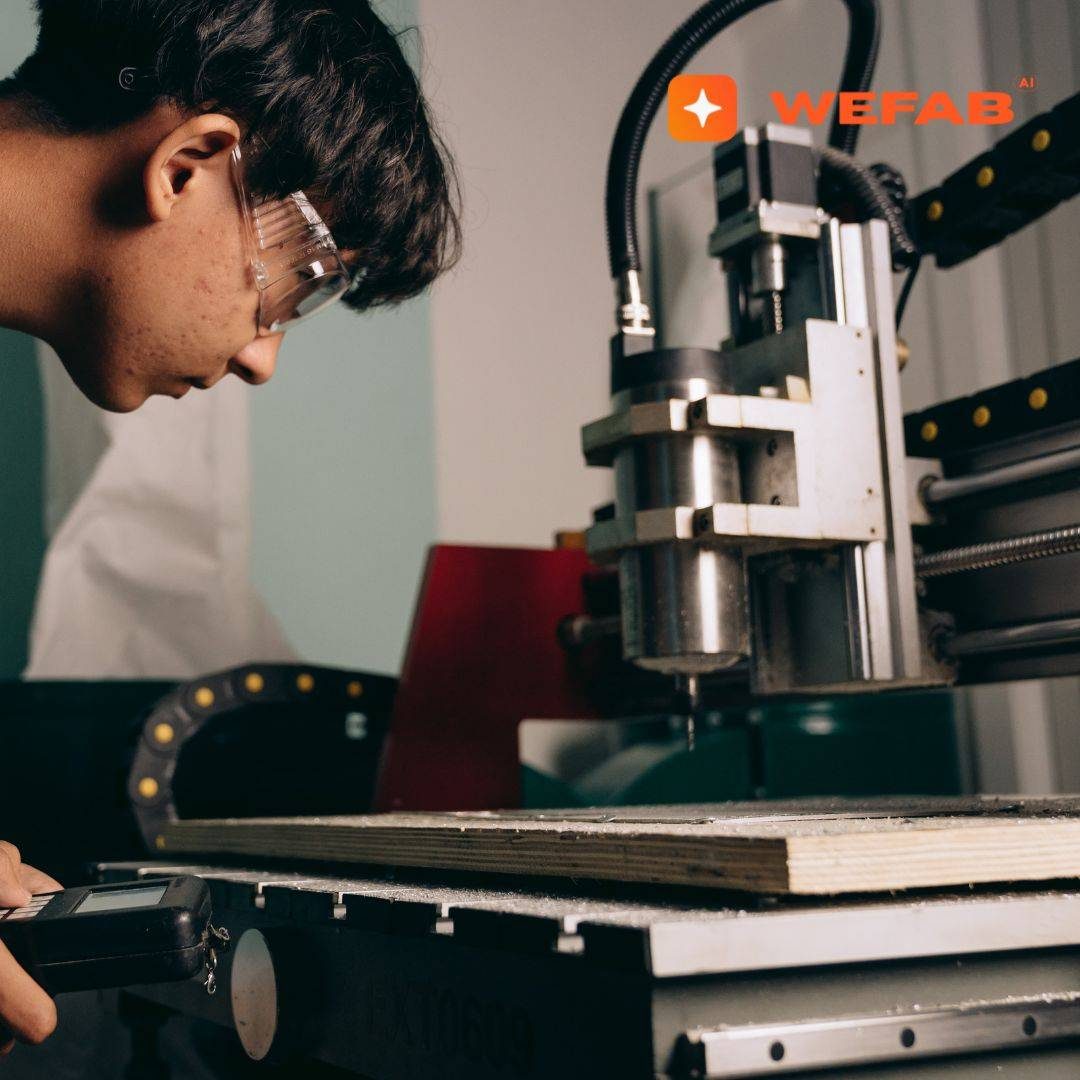

CNC Milling
CNC milling is your bread and butter for creating highly geometric parts. This is accomplished by traversing a cutting implement across a stationary workpiece along three linear axes (X,Y,Z) in rudimentary machines, or five with more advanced configurations, introducing two rotations.
This enables one setup cutting of deep pockets, channels, angled features and contours. CNC mills come in many forms: desktop models support light-duty runs and prototypes; full-size vertical mills fit most high-mix, low-volume projects; 5-axis mills handle multi-sided machining for aerospace and robotics.
The capability for both rough and finish passes, holding micron tolerances, allows shops to accelerate manufacturing and reduce scrap. While high-volume runs enjoy repeatability, setup time and material choices—such as softer metals or plastics—can restrict speed. Hard alloys require slower feeds and tool changes, which can increase cost.
CNC Turning
Turning is specifically used for creating round or cylindrical objects. CNC lathes rotate the stock as a cutting tool imparts the outside diameter, inside bores and grooves.
Swiss-style lathes incorporate axial movement for enhanced precision and stability in the production of small parts with extremely tight tolerances. Conventional lathes are used for shafts and bushings, while Swiss machines are ideal for medical, electronics or EV connector pins.
Turning is rapid and economical for mass production, due to quick part changeover and low waste. However, hard materials accelerate tooling wear, and intricate shapes can necessitate secondary milling or drilling operations.
CNC Drilling
Drilling utilizes rotating bits to create holes and features on flat or curved surfaces. CNC machines can execute single or multi-axis drilling, tapping and countersinking.
Spot drilling, peck drilling, and deep-hole drilling all have their place. Selecting the appropriate bit is a matter of hole diameter, material hardness and finish. For metals like aluminum or mild steel, carbide bits provide good results, and for plastics, high speed steel works best.
Drilling is dependable and precise for the majority of production requirements. However, deep holes or brittle materials can induce chip jam or breakage. Depth and diameter restrictions may demand alternative methods.
How to Choose the Right CNC Machining Method
Choosing the right CNC machining approach involves balancing technical, operational, and business considerations. Considerations such as part geometry, material, tolerance, surface finish, and production volume all contribute to the best choice. It’s a process that blends engineering, supply chain, and cost realities.
Innovation has transformed conventional obstacles such as tight tolerances or complicated designs into advantages in velocity and excellence.
1. Part Geometry
Easy contours can be handled by basic CNC milling or turning, but complex geometries like undercuts or thin walls require sophisticated 5-axis machining. Features such as deep pockets, sharp internal corners, or fine threads frustrate standard tools and demand slower feeds, frequent tool changes or special fixturing.
Complex geometries can bog down cycle times and require custom tool paths, increasing process expenses. Design for manufacturability is key. In addition, by avoiding sharp corners and allowing generous radii, you can reduce tool wear and therefore boost speed.
Early teamwork between engineering and manufacturing guarantees parts are both functional and feasible to machine.
2. Material Type
Metals such as aluminum and copper cut quickly, whereas titanium or hardened steel requires slower speeds, high-powered spindles and rigid box guide ways. Plastics and composites require less cutting forces and alternative chip clearance methods.
Every material has an impact on spindle speed, torque and tool selection. For instance, mold steel requires carbide tools and aggressive coolant systems, whereas plastics require careful heat management to avoid deformation.
Material compatibility is important for both quality and tool life. Bad fits result in fast wear, more scrap, and missed specifications.
3. Tolerance Needs
Robotic or EV projects typically need much tighter tolerances—down to microns. CNC grinding and high end milling can maintain these specs, but more slowly and expensively. Looser tolerances expedite machining, but can compromise fit and function.
Shop-floor inspection and in-process measurement systems help keep tolerances on track. Balance cost against speed and function. Employ tight tolerances just where critical.
4. Surface Finish
Surface finish impacts not only appearance but product longevity. Fine finishes are the result of slow feed rates, sharp tools, and maybe some post-processes like polishing or bead blasting. For exposed components, multi-axis milling provides finer surfaces.
For internal features, EDM or grinding might be required. Match finish must work. Over-processing is expensive but sometimes necessary for seal or wear surfaces.
5. Production Volume
Prototyping or low volume runs do best with flexible CNC setups and fast changeovers. If you’re doing high-volume production, automation, custom fixturing or dedicated tooling may make sense.
Milling is great for short runs, turning centers or multi-tasking machines for big batches. Volume pushes both your cost-per-part and process decisions. Scalability matches machining to project expansion—anticipate demand shifts.
Facing CNC Machining Challenges with Tight Deadlines?
Optimize your project with expert method selection, reducing waste and costs for high-quality parts.
Submit Your Project to Wefab.ai Today to Get Started!
Advanced Machining Processes
Advanced CNC machining is no longer just cutting simple shapes. Emerging techniques such as high speed machining, multi-axis simultaneous movement, adaptive controls and IoT sensors are revolutionizing the way parts are fabricated across the globe. They’re the new tools that allow manufacturers to work faster, consume less energy, and keep up with the tight tolerances needed in robotics, EVs, and consumer tech.
AI and augmented reality are beginning to have a larger role, simplifying job planning, the identification of issues, and even training of workers on the shop floor.
Multi-Axis Machining
Multi-axis machining allows machines to move in more than three directions simultaneously, making it much easier to create parts with deep holes, unusual angles, and curves. This paves the way for featherweight EV parts and super-dense robot assemblies where every millimeter matters.
With multi-axis CNC, you can cut complex shapes in a single setup, so there’s less time spent moving parts back and forth between machines. This translates to quality and less errors. Engineers use these machines to shape advanced alloys and composites, common in climate tech and aerospace.
Multiple shops experience increased cutting speeds and superior surface finishes, reducing the requirement for additional polishing operations.
Programming multi-axis machining is not simple. Key challenges include:
- Toolpath planning for non-linear, multi-directional moves
- Collision detection between tool and part
- Synchronizing multiple axes for smooth operation
- Accurate simulation to catch errors before machining starts
Utilizing multi-axis machines is the key to enhancing accuracy and speed. Less human intervention reduces the chance of human error and maintains job momentum, which is essential for short-run, high-mix manufacturing.
Electrical Discharge Machining (EDM)
EDM sends electrical sparks between a tool and the workpiece, eliminating metal without ever touching the part. This makes it perfect for parts with fine holes, sharp corners or hard-to-reach spots.
It is ideal for more difficult materials such as titanium, tungsten and hardened steel, EDM can go where standard tool bits would quickly wear down. That’s crucial for parts in robotics or EV systems where strength and tight tolerances count.
EDM can create features just a few microns in size, so it’s often used for dies, molds, and micro-components. However, EDM is not as fast as milling or turning.
It can’t vie for the high-volume runs, but it excels when you require precision rather than pace, or creating features inaccessible to conventional cutters. Energy consumption is greater, but for the perfect piece, the accuracy is unrivaled.
The Material and Method Connection
Material selection is central to CNC machining. Each material—metal, plastic, composite, wood or foam—introduces its own machining requirements, which directly influence process selection, speed and finished part quality. How a material responds to forces, temperature and abrasion in a machining context determines not only what CNC technique to take, but what results are achievable.
For procurement and engineering leads, that balance of performance, cost and sustainability means pairing the right process with the right material — every time.
Machining Metals
Metals, particularly steel, aluminum and titanium, are the lifeblood of CNC machining. Their hardness and machinability determine tool selection, feed rate and cutting speed. Softer materials such as aluminum enable higher speeds and easier tooling, whereas harder ones like stainless steel require reduced feeds and sturdy cutters.
Getting precision right with metals needs staged machining: roughing to near shape, then careful finishing for tight tolerances and fine surface finish. Exotic metals like Inconel or tungsten add even more layers of difficulty — frequently needing specially formulated coolants or coated tools to resist wear and heat build-up.
Machining Plastics
Plastics are different from metals in heat sensitivity, expansion and chip formation. Machining plastics such as nylon, ABS or polycarbonate require sharp tooling and reduced cutting speeds in order to avoid melting or deformation.
CNC does have obvious advantages for plastics–low tool wear, quick setup, and the capability to prototype or do short runs with tight tolerances. Nylon is a metal alternative for some assemblies, due to excellent lubrication characteristics and light weight.
Still, plastics pose challenges: each type reacts differently to cutting, so parameters must be tuned for every job to avoid burrs, warping, or poor finishes.
Machining Composites
Composites–carbon fiber, fiberglass, layered polymers–are taking hold in aerospace, EV, and consumer tech. Machining them is tricky: fibers can fray, resins may burn, and dust is a health risk.
Specialized methods consist of diamond-coated bits and light feeds to prevent delamination. Main challenges include:
- Tool wear from abrasive fibers
- Heat build-up and resin smearing
- Fiber pull-out at cut edges
- Complicated dust collection requirements
Despite these, CNC is indispensable for high-performance composite parts, from drone frames to lightweight auto panels.
Beyond the Part: A Lifecycle View
A lifecycle approach to CNC machining techniques considers more than simply producing a part. That is, it covers everything from initial design, to scaling, to how the part is handled at end of use. This lifecycle perspective guides teams clear of overlooked expenses, inefficiency, and end-stage design troubles.
It opens doors to opportunities to apply data, AI, and process improvements for faster or higher-quality.
Prototyping Stage
Early prototypes determine if a design functions prior to deep investment. CNC machining provides immediate, real-world feedback, allowing engineers to identify issues or adjust designs on the fly.
CNC prototypes give teams the opportunity to test both function and form. This reduces ambiguity and prevents expensive mistakes. With CNC, rapid design iteration is possible–even overnight.
This velocity is critical for startups or companies in a launch race.
Benefits of CNC for functional prototypes:
- Real parts, not just visual models
- Fast turnarounds for design changes
- High detail, critical for fit and function testing
- Availability to everything from plastics to metals.
To help facilitate a seamless transition from prototype to production, I suggest documenting toolpaths, setups, and materials choices. This foundation facilitates scaling.
Scaling to Production
Going from a handful of prototypes to thousands of parts isn’t simply about operating more machines. It means selecting the proper CNC techniques—such as going from basic 3-axis to multi-axis, or automated workholding.
Every decision impacts cost, repeatability and lead time. Post volume is a huge factor. Low volumes can leverage the same setups as prototyping, but big runs require optimized toolpaths and batch processes to keep costs down.
Machining time per part frequently declines as processes are honed and fixturing optimized. Up-front investment in jigs or automation increases.
For quality, strong inspection routines—such as in-process probing—are a necessity. They assist in error detection, before scrap or rework.
End-of-Life Factors
Planning for end of life is crucial for both compliance and cost. Selecting materials with facile recyclability reduces dumping costs and buttresses environmental goals.
Designing parts for repair or remanufacture donates products a lengthier existence. This minimizes waste and can assist in achieving rigorous green benchmarks, now prevalent in international markets.
Clearly labeling alloys and finishes aids recycling. By making parts—not one-time use assemblies—repairs become easier.
We need to start end-of-life planning in the design phase.
Modernizing Your Selection Process
As modern CNC machining encounters new requirements for speed, traceability, and reliability across the globe. Traditional selection methods can fail, but modern, technology-powered approaches are empowering teams to get crystal clear and simplify decisions.
Today’s next-generation systems harness AI, real-time data, and smart software to eliminate bottlenecks and provide tangible value, particularly for hardware teams in climate tech, robotics, and EVs. The transition to simply smarter processes translates into fewer mistakes, reduced costs, and facilitated green standard compliance.
AI-Powered DFM
AI-driven DFM tools have transformed the way teams great CNC machining. Automated manufacturability checks now catch problems before parts reach the floor—spotting thin walls, hard-to-print overhangs, and undercuts in seconds. This results in less run / fails and scrap.
The real advantage is in cost-squeezing. AI can suggest toolpaths, materials, or alternative geometries to minimize cycle times and tool wear — crucial when dealing with costly alloys or minimal volumes.
Wefab.ai, an AI-native manufacturer, leverages AI for DFM analysis, enabling more dependable quoting, faster prototyping loops, and designs that work the first time around. This data-driven approach enhances efficiency and precision throughout the manufacturing process.
Smart Quoting
Smart quoting systems leverage AI and machine learning to provide immediate, data-driven quotes based on geometry, material, and order quantity. They remove human bias from the loop and provide buyers with an equitable, live price.
Auto quoting makes RFQ faster. It provides teams hard data to benchmark production alternatives and sidestep surprise costs. Smart quoting offers complete transparency—users see a breakdown of machining steps, lead times and potential risks.
This assists procurement leads in making rapid, well-informed decisions, particularly in high-mix, low-volume situations. Bringing smart quoting into the CNC workflow closes the loop between design, procurement, and production.
Enterprises waste less time waiting and more time creating.
Real-Time Visibility
Modern CNC workflows require real-time data at every point. By tracking orders, machines, and shipments, teams can identify bottlenecks and shift resources before problems snowball.
With predictive delay detection, managers spot risks early. For instance, imagine if a batch is held up by a worn tool and alerts are sent automatically, allowing teams to exchange machines or redirect orders.
This visibility is particularly important when offshoring or working with a global supply chain. Wefab.ai’s services provides customers a unified dashboard for all suppliers, from raw material to finished component.
With clear tracking, teams are able to enforce compliance and quality standards. When we all see the same real-time information, confidence increases and mistakes decrease.
For enhanced real-time visibility, manufacturers should implement automated tracking, well-defined escalation rules, and common dashboards. Even basic measures, such as live machine logs, reduce shocks and enhance results.
Need Expert Guidance on CNC Machining Methods?
Enhance your process with AI-driven insights and tailored solutions for complex parts and materials.
Connect with Wefab.ai Today to Improve Your Workflow!
Conclusion
CNC machining offers significant improvements but presents some real challenges. They see lean teams, tight budgets and lead times and waste that eats away at margins. Missed deadlines and incorrect specifications impact not only the bottom line but buyer confidence. New tools now assist shops in keeping on schedule. Intelligent systems select optimal toolpath, reduce scrap and identify hazards in advance. Shops can pair the appropriate method to every job, accelerate runs and maintain quality. Transparent decisions translate into reduced waste, reduced late-stage projects and more robust pipelines.
Wefab.ai steps in with cutting-edge technology and extensive expertise to support your CNC machining needs. Ready to advance? Explore Wefab.ai’s CNC machining services or contact us to elevate your production today.
