Fused Deposition Modeling (FDM) 3D printing is a popular additive manufacturing method that builds parts layer by layer using a thermoplastic filament. Among these, FFF/FDM is particularly known for its ease of use and affordability. Consequently, it’s pervasive in prototyping and small-batch production for industries including robotics, climate tech and electric vehicles.
The process involves melting a filament through a heated nozzle and depositing it onto a build platform, creating precise geometries with minimal material waste. Materials like PLA, ABS, and PETG provide a high level of flexibility, making FDM ideal for a range of applications.
At Wefab AI, we work FDM into our production workflows. This methodology produces their often rapid turnaround, dependable and extensively personalized solutions to hardware pioneers. It’s the right fit—practical, scalable, and customized to suit your project requirements.
What is Fused Deposition Modeling?
Fused Deposition Modeling (FDM), known as Fused Filament Fabrication (FFF), is the most commonly used and well-known 3D printing technology. These three characteristics are largely responsible for FDM’s popularity. This popular additive manufacturing process operates by melting and depositing thermoplastic material layer by layer to build up three-dimensional objects.
The technology’s popularity has exploded. The dramatic FDM printer price reduction has contributed to this explosion, with printers dropping from $20,000 a decade ago to under $1,000 today, allowing even small businesses to afford them.
Defining the Core FDM Concept
FDM is mainly based on the material extrusion process, in which thermoplastic filaments are heated and extruded through a nozzle. FDM is unique among additive methods due to reliance on high temperature control. This must-have process makes sure that the final material is well bonded.
The CAD model is the digital blueprint that drives the 3D printer’s movement and makes up the internal structure of the printed object. With this growing reliance on CAD models comes the need for accurate design to achieve the best possible outcomes.
How FDM Printers Build Objects

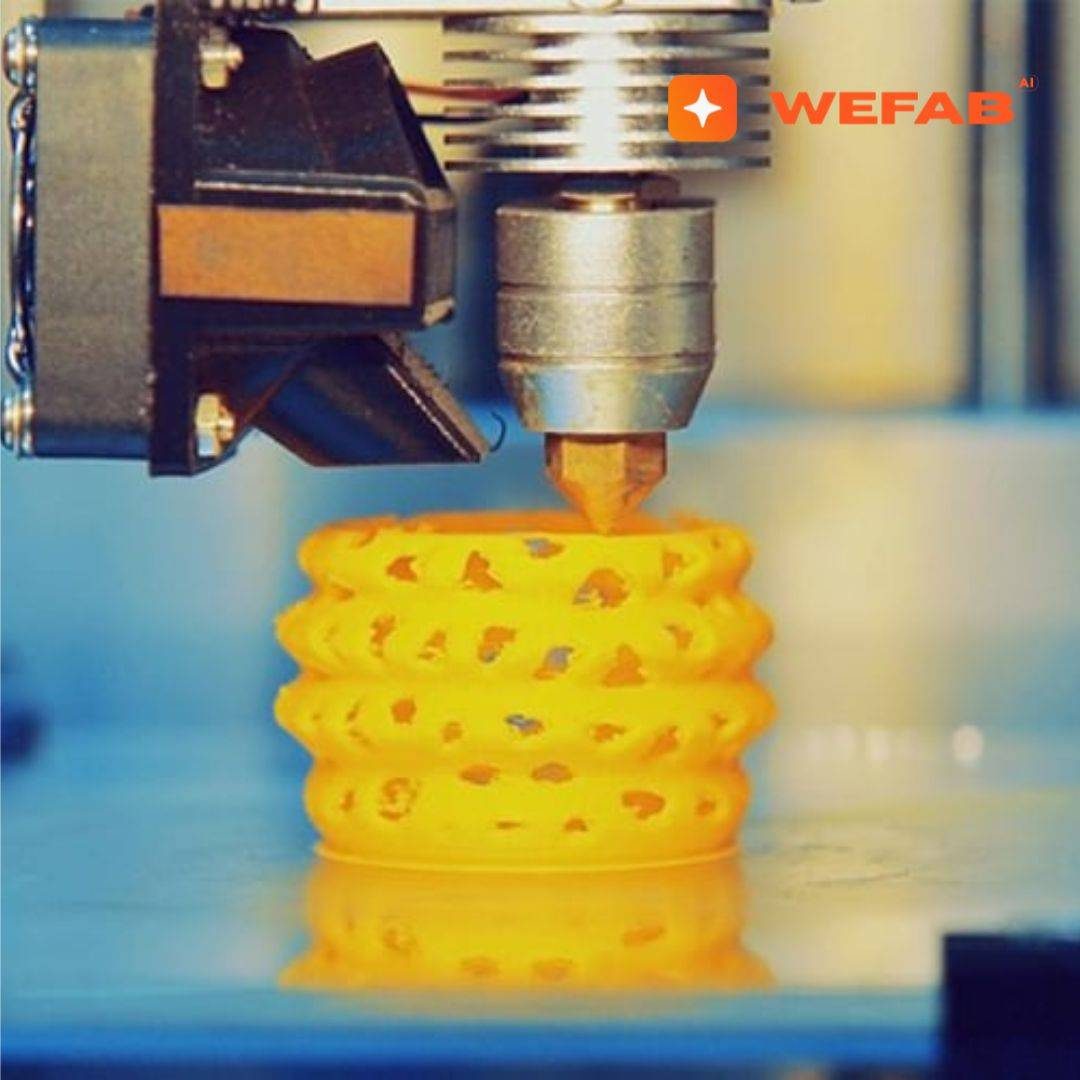

The FDM process starts with the extrusion heads laying down melted filament on a build platform a layer at a time. The extrusion head moves freely along the X, Y and Z axes, and the platform keeps lowering in small increments after every layer.
Melted filament cools almost immediately, resulting in strong bonds between the layers that produce robust parts.
From Digital File to Reality
Wefab.ai’s AI-driven platform takes FDM to the next level by automating the process of transforming CAD files into optimized G-code. This yields optimal scaling, orientation and slicing for the most efficient production.
Key FDM Printing Characteristics
Fused Deposition Modeling (FDM) is arguably the most accessible and versatile of these technologies. Its cost-effectiveness contributes to making FDM popular among beginners in 3D printing. It’s compatible with a wide range of materials, such as PLA, ABS, and PETG. This flexibility opens the door for everything from student classroom projects to industrial prototyping.
Broadly, in spite of its affordability, FDM printing is characterized by conditions that deeply affect the quality and functionality of printed parts.
Visible Layer Lines Explained
Layer lines are unavoidable on FDM prints since they’re a product of additive manufacturing’s layer-by-layer deposition process. These lines are based on the layer height which is usually 0.002-0.02 inches. While thinner layers can produce a higher quality surface finish, they increase the time required to print the part.
Other print factors, such as nozzle diameter and the type of materials used, play into visibility as well. Techniques such as sanding, chemical smoothing, or opting for optimized layer heights can enhance the surface finish, balancing aesthetics with functionality.
Understanding Print Warping Issues
Warping occurs when cooling is uneven, causing the material to shrink and resulting in warping or distorted prints. This is a common problem with temperature sensitive materials such as ABS. For best warping avoidance results, keep build chamber temperatures uniform, and utilize heated beds.
To avoid warping, use adhesives or a textured build plate surface to promote adhesion. These material-specific adjustments are critical to avoid warping disasters.
The Necessity of Support Structures
Supports are essential for any overhang greater than 45 degrees. Typical supports are grid or tree, selected primarily according to the geometry. By designing parts with self-supporting angles, or breaking up more complicated designs, we can minimize the need for supports.
This approach saves us both material and time.
Infill Patterns and Part Strength
Infill patterns such as honeycomb and grid affect mechanical properties and mass. Increasing the densities not only makes the elements and joints stronger, but it also increases material usage and print time.
Finding that sweet spot of balance solves the issue of clocking in structural integrity while avoiding an unmanageable bill.
Exploring FDM Material Choices
Fused Deposition Modeling (FDM) provides one of the most extensive selection of material choices, allowing users to choose a material best suited to their needs and application. This versatility allows engineers to tailor material characteristics to their design goals while maximizing both performance and manufacturability. From common filaments like PLA to advanced thermoplastics like ULTEM 1010, material selection directly impacts print quality, mechanical performance, and end-use suitability.
Everyday Filaments: PLA and PETG
PLA, a cornstarch-based biodegradable material, is great for fast prototypes and non-functional models. Its user-friendly and minimal print temperature requirements make it a go-to for many users. With a gorgeous aesthetic finish, this filament makes up 20% of all desktop FDM prints.
PETG, on the other hand, combines strength and flexibility, making it a preferred choice for parts requiring moderate durability without compromising printability. Its moisture resistance properties make it a great choice for functional prototypes that must withstand high levels of humidity. PLA, though ideal for sustainable initiatives, is a less durable choice.
Engineering Thermoplastics like ABS
ABS is exceptional when it is needed in industrial usages for its strong characteristics and impact resistance. It’s a great material for functional parts that must fit with other enclosures or mechanical components. Because ABS has such a high melting point, it warps while being printed, necessitating the use of heated printing chambers and cumbersome post-processing.
Variants such as ABS-ESD7 provide supplementary characteristics, including electrostatic discharge resistance, broadening its application in electronics.
High-Performance and Specialty Options
Materials such as PEEK and ULTEM 1010 respond to the most demanding environments, providing superior heat resistance, tensile strength, and chemical stability. For instance, ULTEM 1010 is a favored option for aerospace or medical applications because of its unparalleled performance in high-stress conditions.
Choosing Materials for Functionality
The material selection process ultimately centers around what you need the part to do—such as mechanical strength, thermal resistance or chemical compatibility. For example, flexible and heat-resistant TPU is selected for functional, flexible, and durable ABS for structural components.
Balancing Durability with Printability
Comprehension of these trade-offs at the intersection of printability and specified material properties is key. Tough materials such as ABS need exacting environments. PLA serves up ease for more straightforward use cases.
Further design modifications like the use of reinforced geometries can better balance performance while maintaining a high level of manufacturability.
Optimizing Your FDM Prints
If you’re looking to get exceptional prints for your FDM 3D printing, you’ll find patience and a plan are your best friends. By focusing on calibration, slicer settings, design considerations, and other critical factors, you can enhance both the quality and efficiency of your prints.
Here’s how smart optimization, at each stage, can change your results.
Calibrate for Dimensional Accuracy
Routine calibration is necessary to achieve accurate dimensions and proper assembly if the part comprises multiple elements. Tools such as feeler gauges or calibration cubes can help you confirm proper nozzle height, bed leveling, and extruder steps.
Take, for example, how often an operator checks the alignment of their Z-axis—it can save you from warping in multi-part assemblies. Making these adjustments minimizes errors and ensures that the components will fit together correctly, which is especially important for mechanical applications.
Fine-Tune Slicer Software Settings
Slicer settings can have a huge influence on print quality. For smoother surface finishes, we recommend starting with a 0.002–0.004-inch layer height, and around 20% infill density for a good strength/speed balancing point.
Decreasing print speed for highly detailed designs reduces the risk of imperfections, and an ideal temperature adjustment improves the adhesion between layers. Previewing models in slicer software is a crucial step to identify and fix potential issues long before hitting print.
Smart Design for FDM Success
When you design your parts using the constraints of FDM, you create less defects and increase the reliability of your prints. Design details such as rounded corners, fillets, and chamfers encourage strong layer adhesion.
By keeping overhangs at 45° or more, this reduces the need for supports, and hollow cavities use less material without compromising strength.
Optimize Build Orientation Strategy
Many users overlook strategic orientation despite its profound effect on strength and material usage. Vertical stacking increases tensile strength, but a horizontal arrangement offers less need for support.
Optimize your FDM prints with slicer visualization tools to help identify potential stress points and support distribution.
Improve Layer Adhesion Consistently
Proper temperature control is essential for good inter-layer or layer to layer bonding. Maintain even build platform temperatures and filament drying.
Holding 230°F for ABS will give better print quality with less chance of warping.
Mitigate Common Print Defects
Continuous monitoring of print conditions steps in to avoid common defects such as stringing or under-extrusion. Tweak retraction settings and keep an eye on nozzle cleanliness to mitigate these.
With wefab.ai’s AI platform, you can proactively smooth out defects before entering the spool-down phase by analyzing potential issues during print preparation.
Enhancing FDM Part Quality
Fused Deposition Modeling (FDM) is an accessible 3D printing method. Achieving consistent, high-quality parts requires more than just printing. By integrating advanced techniques, including post-processing, surface smoothing, and thorough inspection, the quality of FDM parts can meet demanding industrial standards.
Post-Processing for Better Finish
When it comes to changing the look and feel of end-use products, post-processing is key to transforming FDM parts. Techniques such as sanding can remove any visible layer lines, and painting can create a nice outer appearance and protective polymeric coatings.
Vapor smoothing, especially with ABS, delivers a smooth, glossy surface by using solvent action to dissolve small surface-level defects. Choosing the appropriate post-processing method will be based on the desired material properties and application.
As an example, FDM PLA parts benefit from sanding with the application of a primer coat providing an acceptable surface finish while retaining surface detail. Wefab.ai takes the guesswork out of this decision-making process with its intelligent, AI-powered platform, suggesting customized post-processing techniques based on your specific material and project needs.
Techniques for Smoothing Surfaces
Surface smoothing goes beyond aesthetics. It plays a critical role in performance, particularly for close tolerance parts. Applying solvents like acetone for ABS softens and blends surfaces, reducing roughness.
PEI polymers, in particular, should be handled with care when smoothing. This maintains their outstanding mechanical properties, which are crucial for stringent applications in aerospace and automotive sectors.
Advanced Troubleshooting Print Failures
Issues during a print, like lack of adhesion or warping, are typically the result of improper settings. Such things come to light when print failures are analyzed, revealing problems such as incorrect nozzle speeds and/or temperatures.
For example, by optimizing printing parameters during PEEK FDM printing for different temperatures, a maximum Young’s modulus of 3.09 GPa with reduced porosity is obtained. Continual improvement comes from documenting failures, a process Wefab.ai has folded into quick moving, agile workflows.
Solving Stringing and Blobs
Stringing and blobs are caused by incorrect retraction settings or an excessively high nozzle temperature. Optimizing these parameters stops defects on the outer surface.
Cleaning up affected prints can lead to better surface finishes, making a noticeable difference in complex designs.
FDM Advantages and Disadvantages
Fused Deposition Modeling (FDM) technology has proven itself through the years to be a rock-solid, versatile workhorse of the additive manufacturing industry. Its application possibilities are extensive—from rapid prototyping to production of small-scale runs.
Though it has impressive advantages, it’s accompanied by notable drawbacks that you need to scrutinize, weighing against your individual project objectives. Learning about these things goes a long way to ensuring that it’s used to its fullest potential—especially in engineering and manufacturing environments.
Key Benefits of Using FDM
FDM is unique in its low cost and high accessibility. Desktop FDM printers can be as low as $250, so they are a cost-effective solution for entrepreneurs or small workgroups.
This availability of both specialty filaments like PLA, PETG, ABS and TPU, as well as specialty materials, meets the demands for a wide range of applications. FDM’s production speeds, sometimes getting small prints done in just a few minutes, work well for rapid prototyping cycles.
The entire process is pretty easy and kid-friendly. With easily obtainable materials, such as PLA, teams new to 3D printing can get up and running quickly with relatively little experience.
Recognizing FDM Technology Limits
Given all of FDM’s advantages, it does have some resolution and detail drawbacks in comparison to other technologies, such as SLA. Creating smooth surfaces typically needs post-processing because the layers are visible.
The anisotropic nature of an FDM print can result in weaker layer bonds, which can be a concern in load-bearing applications. Complex geometries often require more support structures, which requires more time and material.
Understanding these limitations from the start helps make sure designs are tuned to work best.
FDM in the Wider AM Landscape
Fused Deposition Modeling (FDM) now represents a significant majority of additive manufactured items, especially in the realm of prototyping and tooling.
The expiration of key patents in 2009 spurred innovation, making the technology more accessible and expanding its applications across industries such as aerospace, automotive, and healthcare. Currently, more than a third of companies (34%) use FDM, with 70% using it primarily for prototypes and 30% for production purposes.
Furthermore, it can create impressive tensile strength parts up to 35.45 MPa. It is capable of producing complex patterns, such as a 33-piece gown that requires 75 hours to print, showcasing its extraordinary versatility.
FDM Versus Resin Printing (SLA)
Aspect | FDM | SLA |
|---|---|---|
Material Types | Thermoplastics (e.g., PLA, ABS) | Photopolymers |
Surface Finish | Rougher, layered texture | Smooth, high-detail |
Applications | Functional prototypes, tooling | Dental, jewelry, detailed models |
Cost | Lower upfront and material costs | Higher costs for resin and setup |
FDM’s affordability and broad material variety make them suitable for functional prototypes, while SLA shines at creating intricate, highly detailed parts. User needs—be it high quality or just cost—drive the decision one direction or the other.
Impact of Recent Hardware Advances
Today’s cutting-edge FDM printers use automation and smart technology to minimize setup time and repetitive procedures while enhancing repeatability. With innovations in dual-extrusion systems, multi-material printing is now possible, expanding design possibilities even further.
Production-ready machines high-end systems such as the MakerBot METHOD series provide industrial-grade quality at prices that enterprise companies demand. This underscores the continually changing landscape of hardware that balances performance with price.
Conclusion
With FDM, designers and engineers alike can easily translate their ideas into reality using 3D printing. It has a huge variety of materials and beginner-friendly features. When you can build not only functional prototypes but end-use parts, it’s a valuable tool that brings consistent, dependable results to the table. Primarily, fine-tuning your print settings will make a huge difference in the quality of your FDM prints. Her advice is selecting an appropriate material and understanding how to succeed with that material. As an AM technology, it is likely to have high limitations in surface finish and material strength. Yet, despite this limitation, its versatility and cost-effectiveness still make this technology king in additive manufacturing.
Looking to further your education with us? Learn more about Wefab.ai, and receive an immediate quote in seconds!
Frequently Asked Questions
What is Fused Deposition Modeling (FDM) 3D printing?
Fused deposition modeling (FDM) is one of the most common 3D printing methods in use today. It’s popular for its affordability and accessibility. FDM, as it’s commonly known, is the most widely used technology for prototyping, functional components, and the hobbyist space.
What materials are commonly used in FDM printing?
FDM printers operate with FDM thermoplastic substrates including PLA, ABS, PETG and TPU. Each material has its set of distinctive properties, like strength, flexibility, or heat resistance, that cause them to be ideal for varying applications.
How can I improve the quality of my FDM prints?
To improve your print quality, you may need to play around with your layer height, print speed, and temp settings. Utilize a clean, well-leveled build plate and store your filament properly to prevent moisture absorption.
What are the advantages of FDM printing?
FDM 3D printing is economical, user-friendly and works with a diverse selection of materials. That makes it perfect for rapid deployment of prototypes, low-quantity production runs, and classroom and educational programs.
What are the limitations of FDM printing?
FDM can exhibit lower resolution than other methods, noticeable layer lines, and weaker material due to layering. A lot of these issues can be fixed through post-processing, though.
How does FDM compare to other additive manufacturing (AM) technologies?
While FDM is cost-effective, easy to use, and efficient at scale, it can be less accurate and diverse in materials compared to technologies such as SLA or SLS. It’s great for low-cost, functional prototypes or parts.
