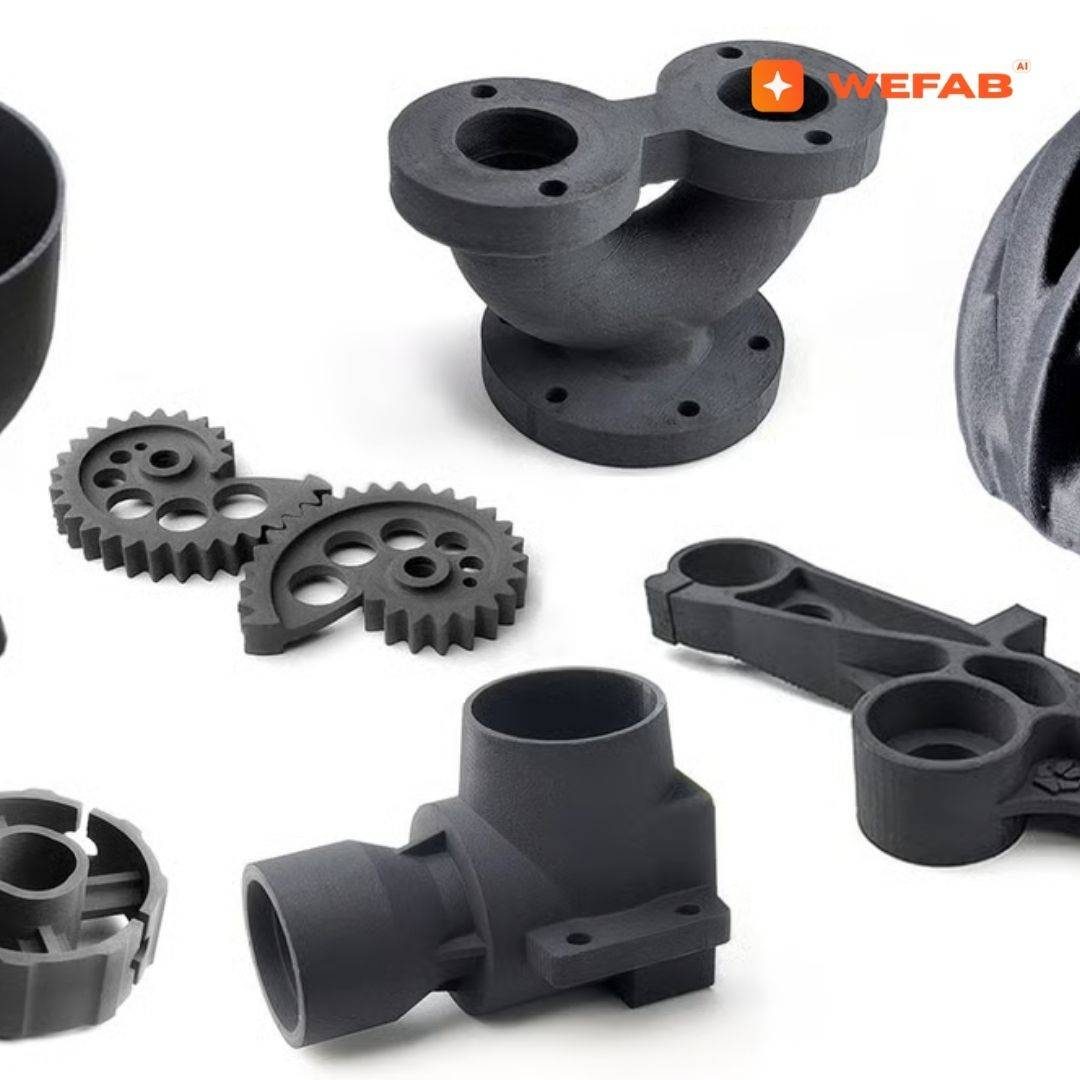

Carbon fiber composite 3D printing brings the properties of carbon fiber together with the design flexibility and efficient production of additive manufacturing. This unique combination results in extremely lightweight and durable parts. By embedding unidirectional carbon fibers into a polymer matrix during the printing process, components with exceptional strength-to-weight ratios can be achieved.
This advancement is ideally suited for industries including aerospace, automotive and robotics. This approach mitigates excess material waste and provides unique design freedom to produce highly intricate, complex geometries. It allows the rapid creation of custom components without compromising structural integrity, far more quickly than conventional manufacturing methods.
Significant strides in 3D printing technology have reduced the barriers to incorporating carbon fiber composites into your workflow. This integration increases impacts and efficiencies without sacrificing quality. In this post, we’ll dive into its remarkable applications, unparalleled benefits, and how it’s revolutionizing the future of manufacturing.
Why Choose Carbon Fiber Composites?
Carbon fiber composites have propelled 3D printing from simple prototypes to real-world applications with unparalleled lightweight characteristics, combined with unmatched strength and performance. These advanced materials allow for unparalleled design freedom. They outperform comparable materials in state-of-the-art applications in industries such as aerospace, automotive, and consumer products.
Let’s take a closer look at what makes them so advantageous.
1. Understand Material Property Advantages
Carbon fiber composites significantly increase the tensile strength and stiffness of 3D printed parts. They are stronger, stiffer, tougher, and less brittle than common build materials like ABS and PLA. Their exceptional resistance to bending under load guarantees outstanding strength, even in the most extreme service conditions.
For example, Carbon Fiber Nylon 6 samples demonstrate outstanding heat deflection and are well-suited for thermal-intensive applications. When you combine carbon fiber with other polymers, you’re creating strong, lightweight materials that can stand the test of time.
These differentiated materials offer dramatically improved performance in demanding applications, including manufacturing equipment and delicate medical instruments. The beauty of utilizing widely available, standard desktop 3D printers is that manufacturers can leverage cost-effective precision without the need for specialized equipment.
2. Explore Mechanical Performance Under Stress
The tensile strength, rigidity, and mechanical performance of carbon fiber composites shine under mechanical loads, offering a level of durability that most thermoplastics can’t compete with. Their performance only gets better when longer fiber strands are employed, getting you superior reliability even in the most dynamic, high-stress environments.
This combination allows for highly durable applications that demand wear resistance and service life, like industrial tooling or aerospace components. In addition, their lightweight nature helps save overall energy in industries that are focused on efficiency first.
3. Compare to Traditional Materials
Not only do they provide much greater strength-to-weight ratios compared to metals or thermoplastics, they allow for the creation of more complex geometries. They remove the time-consuming manual molding step, expediting the production of both sustainable, consumer-ready goods, as well as low-volume prototypes.
Long-term, their cost-effectiveness and sustainability make them even more desirable, particularly in developing green technologies.
Overcoming 3D Printing Challenges
Carbon fiber composite 3D printing has amazing potential for producing lightweight, high-strength components. In order to get repeatable, reliable results, we need to overcome a number of challenges. From material properties to printing parameters and final product treatment, each stage requires rigorous oversight.
1. Address Technical Hurdles
Well known challenges of carbon fiber 3D printing include material adhesion and layer bonding. To counteract this, employing a heated print bed—ideally with a temperature of at least 212°F—will help create solid layer adhesion.
Combine this with an enclosed heated chamber controlled at 50–80°C to reduce warping and improve dimensional stability. Printer calibration is just as important—frequent calibration of nozzle alignment and extrusion systems stops defects in their tracks at the source.
Filament feed issues, particularly with abrasive carbon fiber filaments, can be resolved by using hardened steel nozzles designed for wear resistance. Cooling and distortion issues can be avoided with optimal design and support, which is very important for complex or large designs.
2. Optimize Print Settings
Temperature settings of 482–608°F enhance layer adhesion and final part strength, particularly for the reinforced composites. Nozzle sizes can be adjusted to find a happy medium between detail and print speed, and retraction settings can be dialed in to cut down on stringing.
Environmental conditions, including humidity control, are perhaps the most important aspect of ensuring filament quality. Composites of CFR PLA attain an exceptional flexural strength of 48,564 psi with optimized settings.
This result demonstrates that careful parameter control is what makes all the difference.
3. Implement Best Post-Processing Practices
Post-processing deepens surface quality and overall durability. Sanding and polishing can be used to achieve finer finishes, and topcoats can be applied to increase wear resistance.
Post curing steps further enhance mechanical properties, even allowing parts to perform under continuous extreme conditions up to 372°F. Standardized post-processing to a checklist ensures best performance.
Struggling with Carbon Fiber 3D Printing Challenges?
We’ve got answers! Connect with the wefab.ai team to optimize your designs and streamline production with precision and efficiency.
Discover how we can transform your manufacturing today.
Carbon Fiber 3D Printing Methods: How It Works?
The introduction of carbon fiber into 3D printing technologies has revolutionized the manufacturing world. It improves the mechanical performance and enables the production of complex, lightweight, but durable parts. Methods for carbon fiber composite printing each have their benefits and drawbacks depending on the application and required material properties.
1. FDM with Carbon Fiber
Fused Deposition Modeling (FDM) uses a thermoplastic filament loaded with short carbon fibers. We start by extruding carbon-fiber reinforced nylon through a controlled 3D printing process. It’s really more like cooking.
Then, the process consistently distributes tows of carbon fiber and resin in perfect layers. The introduction of the order of magnitude longer fibers provides the tremendous boost in the part’s flexural stiffness and strength. Tensile strengths of preprocessed carbon fiber-reinforced composites are extraordinary, outpacing untreated samples by more than 13.8%. This improvement ensures their diligent performance in load-bearing applications.
Thermoplastic matrices, like PLA, ABS, or nylon, are essential to hold carbon fibers together when FDM printing. Achieving successful print quality requires precise control over nozzle temperature. It necessitates fine-tuned control of the feed rate to avoid clogging and ensure the best interlaminar bonding.
This process reduces void spaces and increases fracture toughness. In specific bead orientations, it increases impact resistance by as much as 42%, ensuring it is an excellent choice for aerospace and automotive parts.
2. SLS with Carbon Fiber
In Selective Laser Sintering (SLS), a high-powered laser fuses carbon fiber-reinforced powders together—one layer at a time. SLS adds to what FDM does by bringing in continuous fibers. This improvement results in excellent mechanical characteristics of high tensile strength (668.3 MPa) as well as flexural strength (591.16 MPa).
Laser parameters such as laser power and scan speed directly affect surface finish and part density. Ideally suited for energy applications, SLS-printed carbon fiber components provide complex geometries and extended performance life.
3. Other Methods and Carbon Fiber
An additional resin-based option, like stereolithography (SLA) or digital light processing (DLP), provides another option for carbon fiber composites. These processes work with liquid resin loaded with carbon fibers, allowing for different surface texture finishes and a finer level of detail.
Hybrid approaches, such as those that unite both FDM and SLA technologies, only increase what’s possible when creating customized products. Nascent technologies such as automated fiber placement and new nozzle designs are pushing boundaries.
They are lowering weight by an order of magnitude, with a stunning 20% weight savings in airframe structures, and improving fracture toughness industrial-wide.
How to Design for Complex Geometries in Carbon Fiber 3D Printing?
Whether you’re experienced or new with carbon fiber 3D printing, good design will help you maximize its capabilities. The novel anisotropic properties of these carbon fiber composites certainly warrant a welcome level of thoughtful planning. This is how we accomplish both efficient lightweight construction and structural performance.
Utilize new, sophisticated CAD tools to create tighter, more complex designs. Align fiber orientations, since each design detail is important in determining the impact and longevity of the completed product.
1. Design for Carbon Fiber 3D Printing
When designing for carbon fiber 3D printing, it’s important to understand the strengths and limitations of the technology. For example, minimizing overhangs eliminates the requirement of deploying excessive support structures, which saves time in post-processing and upkeep overall part aesthetics.
Wall thickness, number of contours, and infill patterns significantly influence strength. While thicker walls and denser infill typically improve load-bearing capacity, they tend to use more material. Thermal and mechanical stresses should be considered as well, as carbon fiber composites can act unpredictably under different stresses.
SLS technology is capable of producing highly complex, precision laser-sintered carbon fiber powders. This particular capability is why it’s the go-to CAM solution in industries including aerospace and automotive.
2. Optimize for Anisotropic Properties
Carbon fiber’s anisotropic nature, where material properties differ based on axis or direction, provides unique opportunities for design consideration. Orienting fibers along stress paths in the areas that bear the loads increases the material’s strength and rigidity to their fullest potential.
For one, FFF can scatter laminates systematically, allowing designers to maximize fiber path for targeted uses. This design−for−subtractive approach achieved the goal of substituting aluminum motorcycle triple trees for 3D-printed composites. Accordingly, it achieved exceptional weight saving with full performance retained at the top.
3. Consider Fiber Orientation
Because fiber alignment directly affects tensile and compressive strength, this needs to be done deliberately. Advanced implementation techniques including dispersed laminate fabrication offer a greater degree of control, improving material performance and durability.
Proper evaluation of fiber placement ensures structural integrity, especially in lightweight yet robust parts for aerospace or automotive use, where up to 90% weight reduction is achievable.
Wefab.ai: Mold-Free Innovation
Wefab.ai leverages AI-enhanced manufacturing services to advance carbon fiber 3D printing, delivering precision and efficiency for complex components. Here’s how we support hardware innovation:
- AI-Enhanced 3D Printing Solutions:
- AI optimizes print parameters like layer height, extrusion rates, and cooling speeds for precision and repeatability.
- Enhances aerospace carbon fiber components with superior strength-to-weight ratios for high-performance needs.
- Adapts dynamically to complex projects, unlocking new design possibilities in composite manufacturing.
- Rapid Prototyping with Complex Geometries:
- Enables fast prototyping with shorter lead times, accelerating product development for automotive, EV, and robotics industries.
- Supports tailored solutions and reduced design cycles without compromising performance or strength.
- Explore Instant Quote Options:
- Offers an easy-to-use platform for instant quotes on custom designs and complex geometries.
- Requires details like size, tolerances, and material choices for accurate pricing and transparency.
Facing High Costs with Carbon Fiber 3D Printing?
Take control with wefab.ai’s AI-enhanced manufacturing services. Get an instant quote today and see how we can reduce your expenses while delivering complex, high-quality parts.
Discover how we can transform your manufacturing today.
Where Are Carbon Fiber Composites Applied Across Industries?
All-in-all, carbon fiber composite additive manufacturing is reinventing industries, providing firms with the lightweight, durable, and hyper-personalized solutions they need to succeed. Plus, it’s able to produce intricate shapes with crushing strength that’s inimitable. This capability sets it apart as a profound, disruptive development for the aerospace, automotive and consumer goods industries.
By lightening material without sacrificing durability, carbon fiber composites allow for unimaginable advances in efficiency and innovation.
Renewable Energy Applications
Carbon fiber composites are a key enabling technology in many renewable energy technologies. Their application in wind turbine blades, for example, increases energy production by lightening the load and allowing for a stronger structure.
Lightweight components maximize turbine output by facilitating larger blade designs that can harness greater areas of wind energy. A case study showed that integrating carbon fiber improved blade performance by 160% in design limit load, highlighting its capabilities in demanding environments.
Beyond wind turbines, these materials are applied in solar panel supports and tidal energy systems, where lightweight yet strong structures are essential.
- Wind turbine blades
- Solar panel frames
- Tidal generator components
Wearable Device Applications
In the developing wearable technology space, the durability and comfort of carbon fiber composites at small scales provides even more options for design considerations. Their lightweight, flexible nature allows devices to become less bulky, an important factor for health monitoring devices and fitness trackers.
In addition, carbon fiber increases impact resistance, making sure the forerunners get the job done under the stress of serious action. On fitness bands, ultralight carbon fiber is used to achieve an optimal balance of strength and flexibility.
In parallel, medical monitoring devices exploit its ergonomic qualities.
Automotive Electrification Applications
Electric vehicles (EVs) use carbon fiber extensively to improve vehicle efficiency. More energy-efficient lightweight components with lower energy consumption help extend battery range and vehicle performance.
As an example, consider how BMW uses carbon fiber chassis components to increase both fuel efficiency and safety. By using continuous carbon fiber, tensile strength is increased by an additional 30-50%, making it well suited for the most premium applications including high-end EVs.
- Battery enclosures
- Structural frames
- Exterior panels
Cost-Benefit Analysis of Carbon Fiber 3D Printing
A cost-benefit analysis reveals how carbon fiber 3D printing can transform manufacturing economics for professionals in aerospace, automotive, and renewable energy.
- Compare Costs to Traditional Methods: Initial investment in carbon fiber 3D printers and training is high, but production costs for metal components can drop by up to 40%, especially for lightweight, high-performance parts like aerospace structures.
- Quantify Performance Gains: Carbon fiber offers up to 50% weight savings over metals, with improved strength and durability, enhancing fuel efficiency and product lifespan.
- Analyze Long-Term Savings: Durable components reduce maintenance costs, while efficient manufacturing processes yield significant long-term savings, further optimized by AI-driven solutions.
|
Material |
Upfront Cost ($/lb) |
Durability (Years) |
Weight Reduction (%) |
|---|---|---|---|
|
Carbon Fiber |
20 |
10+ |
50 |
|
Aluminum |
2 |
7 |
20 |
|
Steel |
1.50 |
15 |
0 |
Future Trends and Research in Carbon Fiber 3D Printing
This new and exciting landscape of carbon fiber composite 3D printing is changing at an extraordinary pace, fueled by the latest developments in materials, processes, and technologies. Additive manufacturing is incredibly flexible, and when paired with the unique advantages of carbon fiber, this combination creates thrilling possibilities.
This potent combination is revolutionizing custom manufacturing in industries from defense to fashion. Take a look below as we dive into the trends, challenges, and research propelling its future.
1. Emerging Technologies in Composites
Recent advancements in carbon fiber composites have seen a growing use of automation and AI, enabling precision manufacturing on a massive scale. Automated workflows, driven by artificial intelligence algorithms, are minimizing production mistakes and increasing coherence.
The development of new hybrid materials, like carbon fiber-reinforced thermoplastics, is increasing the versatility of composites’ applications. One such industry that is reaping the benefits of these new materials is aerospace engineers—using them in lightweight, durable aircraft components.
Advances in 3D printing technologies are now making it easier than ever to design and manufacture these intricate, lightweight, high-strength structures affordably. These advancements have paved the way for large-scale implementation across sectors such as automotive and sports equipment.
2. Overcoming Current Limitations
Two of the primary challenges in carbon fiber manufacturing lie in scalability and waste management. To meet this challenge, researchers are using new recycling methods for carbon fiber reinforced polymers to minimize environmental harm and production costs.
This has only been made possible through collaboration between academia and industry, paving the way for discoveries in filament development with improved mechanical properties. A detailed checklist for overcoming these limitations addresses the need to optimize production techniques, invest in research, and enhance collaboration, among other things.
3. Explore New Research Directions
There is ongoing research that is improving carbon fiber’s mechanical and thermal properties. These interdisciplinary approaches, by uniting material science and AI, are starting to produce major breakthroughs.
Federal government funding, alongside that of private funders, is vital, supporting research into the recyclability of filaments and high-performance filaments. Key areas of research involve energy-efficient manufacturing processes, advanced recycling technologies, and new formulations of composites.
- Second, a rise in adoption of CFRP carbon fiber 3D printing in aerospace and automotive.
- Developing new, cost effective recycling methods for carbon fiber polymer composites.
- Advancements in hybrid composites for multifunctional applications.
- Enhanced scalability of additive manufacturing for industrial use.
Conclusion
Carbon fiber composite 3D printing is revolutionizing the way we think about manufacturing. This streamlines intricate designs, reduces lead time, and maintains structural integrity without compromising weight. This freedom to design complex shapes free from manufacturing constraints conserves materials and enhances productivity. Industries such as aerospace, automotive, and robotics have already recognized the benefits, and the opportunities continue to grow.
At Wefab.ai, we’re aiming to push this cutting-edge innovation further. Our innovative mold-free solutions, paired with AI-driven design tools, put you at the forefront of making quality parts quicker and more intelligently than the competition. Whether you require prototypes or production parts, we make it easier to achieve superior results at reduced costs.
Looking to dive deeper into additive manufacturing technology? Visit Wefab.ai and receive an instant quote in minutes today!
Frequently Asked Questions
What is carbon fiber composite 3D printing?
Carbon fiber composite 3D printing takes the unparalleled strength of carbon fiber and the limitless possibilities of 3D printing to make something greater. It enables the production of extremely lightweight, durable and high-performance parts, making it a perfect fit for demanding applications like aerospace, automotive and robotics.
Why are carbon fiber composites ideal for 3D printing?
The carbon fiber composite materials used in this application are both lightweight and incredibly strong. They are warp-resistant and high-stress tolerant. This fantastic dimensional stability coupled with low shrinkage makes them ideal for high-precision, high-reliability 3D printing applications.
How does Wefab.ai enhance carbon fiber 3D printing?
WeFab.ai’s pioneering 3D printing technology removes the requirement for molds, resulting in a quicker, more efficient process. It accelerates production, cuts costs and facilitates creation of complex geometries with unparalleled precision.
What industries use carbon fiber composite 3D printing?
Industries such as aerospace, automotive, healthcare, and sports rely on carbon fiber 3D printing to create lightweight, durable, and custom-fit products like drone parts, prosthetics, and performance equipment.
What are the cost benefits of carbon fiber composite 3D printing?
This process minimizes the waste of materials and the expense of conventional tooling is not required. Wefab.ai’s mold-free innovation drastically reduces expenses, creating new possibilities for more affordable and accessible high-performance parts.
What design considerations are key for carbon fiber 3D printing?
Considerations should be given to optimizing the strength-to-weight ratio, and most importantly, guaranteeing the accurate placement of reinforcements. Wefab.ai’s technology, which enables the printing of complex geometries and high levels of customization, is uniquely equipped to address those needs.
