Brass and Bronze are two copper-based alloys with differing compositions and applications. Brass combines copper and zinc, providing a bright gold color, excellent machinability, and great electrical properties for connectors, valves, and decorative components.
Bronze blends copper with tin or aluminum providing greater wear resistance, improved fatigue strength and excellent corrosion resistance for bushings, marine fittings and bearings. If it’s wet or salty, bronze is going to last longer.
For tight-tolerance CNC parts, free-cutting brass grades minimize cycle time and tooling wear. For sliding pairs, phosphor bronze reduces friction and noise.
Material cost and finish differ too: brass polishes easily; bronze offers stable performance under load and heat. The below sections contrast properties, costs, and sourcing notes.

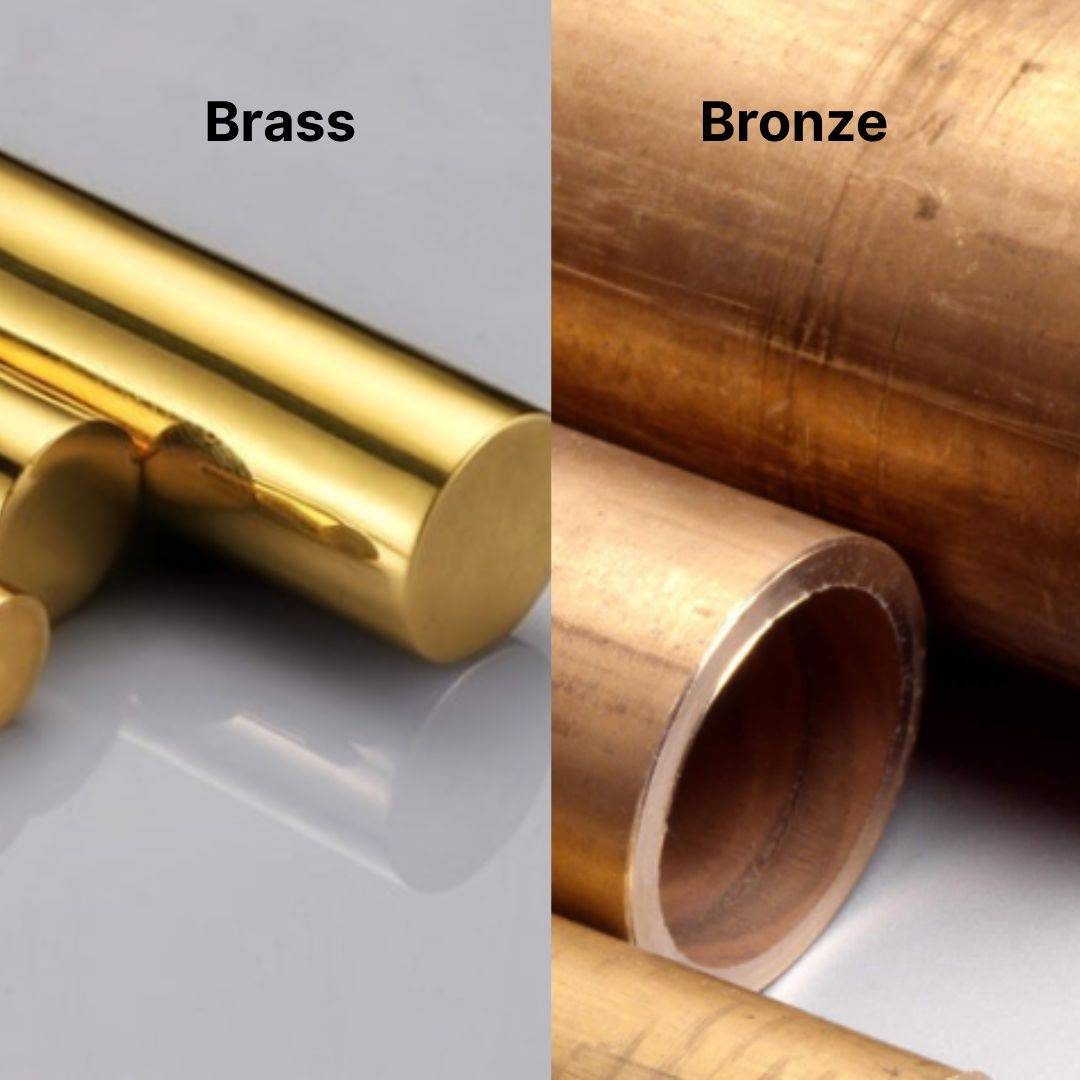

Brass vs. Bronze: A Technical Breakdown
Side-by-side, both are primary copper alloys, yet they diverge in composition and characteristics, behavior in manufacture, and life-cycle economics. Procurement and engineering should align alloy selection with stress profile, environment, and processing route to achieve improvements in velocity, quality, and unit cost.
Attribute | Brass (Cu-Zn) | Bronze (Cu-Sn) |
|---|---|---|
Typical composition | Cu + 10–40% Zn; may include Pb | Cu + ≤12% Sn; may include Al, Si, P |
Color | Yellow-gold | Reddish-brown |
Melting point | Lower, ~900–940°C | Higher, ~950–1,000+°C |
Mechanical profile | More malleable, lower tensile strength | Harder, higher tensile strength, more brittle |
Brinell hardness | ~30–200 | ~40–420 |
Conductivity | Thermal ~64 BTU/hr-ft-°F; Electrical > bronze | Electrical ~15% IACS (lower than brass, copper) |
Corrosion | Good, but stress-cracks in ammonia/salts | Excellent, especially seawater |
Typical uses | Plumbing, musical instruments, CNC fittings | Bearings, bushings, marine gear, statues |
1. Composition
Brass is copper-zinc. Bronze is primarily copper-tin, with possible aluminum, silicon or phosphorus. Copper (29) is the key element, whereas brass and bronze are man-made alloys that form in usable metal states.
Zinc content in brass (10–40%) drives ductility, color shift toward yellow, and machinability. Leaded brass boosts strength and free-cutting behavior. Tin in bronze (≤12%) increases hardness and corrosion resistance but lowers electrical conductivity.
Composition determines color, hardness and corrosion response, so reference a vetted chart of common grades (e.g., C36000, C93200) to match selection to use case.
2. Mechanical Properties
Brass provides greater malleability and a lower melting range that assists forming and brazing. Bronze provides more hardness and tensile strength, but can be more brittle in thin dimensions.
Some bronze grades exhibit better wear resistance than the majority of brasses. Select by ductility, formability, Brinell hardness, and tensile goals associated with the final part’s duty cycle and joining scheme.
3. Machinability
Brass is a go-to for CNC machining and metal stamping because of its excellent chip control, low tool wear, and very clean surface finish.
Bronze machines slower, requires sharper tooling or coatings, but produces long-wear parts for heavy-duty service. Machinability influences cycle time, tool spend and RA finish — balance machinability scores for high-volume or tight-tolerance runs.
4. Corrosion Resistance
Bronze works wonderfully in seawater and other harsh media. Brass resists tarnish but will stress-crack with ammonia or salt which is an issue for coastal plumbing.
Corrosion properties to use—marine fittings, valves or decorative hardware—and map a shortlist of alloys proven for each environment.
5. Cost Implications
Brass is typically less expensive, while bronze is more expensive because of tin and the specialty additions. Pricing swings with market demand and composition.
A bad choice boosts scrap, tooling and warranty expenses. Model overall lifecycle cost, accounting for maintenance intervals and scheduled replacement.
The Material Selection Dilemma in Manufacturing
Material selection between brass alloys, bronze alloys, and copper alloys significantly influences manufacturability, unit economics, and field performance. A poor choice can lead to rework, last-minute swaps, and inconsistent quality, while the right material connects unique properties to form factor and supplier depth.
Availability vs. Design
Most programs begin with dream specs, but run aground when the alloy isn’t available in the right form—bar, sheet, tube or near-net casting. Usual cuts appear at thickness extremes or mill-length minimums, requiring wall-section or joining re-designs.
No access to tight-spec copper alloys or a certain bronze grade forces teams to switch late to “close enough” materials. That frequently means softer brass instead of harder bronze, bringing down scratch resistance, dent resistance and yield strength.
Supply chains for red metals are tumultuous. Lead times drift with mill capacity, energy costs and scrap flows, which can delay DFM gates and increase freight and holding costs. Real-time price and availability data makes less decisions and surprises.
Alloy family | Typical grades | Common forms | Notes |
|---|---|---|---|
Brass | C260 (cartridge), C360 (free‑cutting), C464 (naval) | Bar, rod, sheet, tube | High machinability, malleable, cost-effective |
Bronze | C510/C521 (phosphor), C932 (bearing), C954 (aluminum) | Bar, tube, sand/centrifugal cast | Harder, stronger, better wear/corrosion |
Copper | C110 (ETP), C101 (OFHC) | Sheet, bus bar, tube | Soft, high conductivity, excellent corrosion resistance |
Performance vs. Cost
Bronze is typically more scratch- and dent-resistant than brass, as it’s harder. Tin bronzes at 3–14% Sn increase strength and wear, at 25% Sn melting point drops to ~800 °C, which is useful for some casting routes.
Copper is softer than either but is great at resisting corrosion and conducting. Phosphor bronze enhances spring performance and fatigue life, but increases part cost from both an alloy premium and slower machining. Certain bronze pieces cost us 4x as much as similar brass.
Yellow brass (e.g. C360) wins in volume because machinability and malleability allows for shorter cycle times and less tool wear. Bronze works into heavy-duty gears, bushings and marine valves.
Balance hardness, ductility, conductivity, corrosion against load cases, environment, tolerance stack.
Speed vs. Quality
Brass machines quick, short chips, cleaner edges and low burrs. That accelerates CNC throughput and scrap, but can decrease wear resistance versus bronze in abrasive or impact service.
Hurrying with light-duty operations on copper alloys can mask microburrs or smear that damages sealing surfaces. Bronze parts require slower feeds, sharper carbide and tighter coolant control — which elongates lead time but produces better dimensional stability and surface integrity.
Balance takt time with the needed strength, corrosion class and finish. For ornamental items, brass color and brilliance are a bonus. For hard-working assemblies, bronze’s hardness and bearing action reward you in service life.
Navigating Manufacturing Complexities
Brass and bronze alloys exhibit different properties in manufacturing, necessitating teams to consider machining loads, surface integrity, and batch-to-batch variance. Transparent specs, audited standards, and rigorous quality gates help mitigate risk while ensuring cost and schedule consistency across international supply chains.
Tool Wear
Harder bronzes—silicon bronze and aluminum bronze—spur higher cutting forces and heat that diminishes tool life compared to free-machining brasses like CW614N (CuZn39Pb3). Unplanned wear drives up cost per part and causes unplanned tool changes that clog CNC cells.
Choose alloys with good chip break and lower hardness when the design allows, or tune parameters: use sharp, AlTiN- or TiAlN-coated carbide, reduce radial engagement, and apply high-pressure coolant to evacuate chips. Monitor flank wear, tool load and spindle power per alloy. Those insights drive alloy choices, cutter geometry and even bargained cycle-time estimates.
Verify lead times for replacement tools at RFQ and factor in regional shipping concerns to prevent excessive downtime.
Surface Finish
Brass tends to produce better finishes owing to ductility, so turned housings and connectors reached Ra ≤ 0.8 µm with light passes. Bronze frequently requires additional processing—fine-turn, micro-polish, or vibratory finishing—to equal that sparkle on decorative grilles or marine trim.
Finish isn’t just cosmetic; lower Ra extends seal life, reduces friction, and limits crevice corrosion. Define finish targets (Ra/Rz, lay and post-processes) in drawings early, aligned to function and cost.
For custom orders spanning climates, match finish to local specs and corrosion requirements. Salt-spray or cyclic humidity testing might be mandated by local regulations.
Quality Control
Check alloy composition per batch with PMI (XRF) and validate mechanical properties with standard tests—Brinell, tensile sampling, microstructure inspection—because random feedstock fuels scrap, rework, and late deliveries.
Get 1st-article samples for lab work and fit/functional tests prior to mass build. Lock the control plan from those results. Adopt rigorous supplier verification: confirm nominal grade (e.g., C36000 vs. C46400), heat numbers, and mill certs.
Check documentation authenticity on test reports and certificates. For new factories or tight markets, introduce third-party agencies early, do on-site audits and pre-shipment inspections with accredited firms. Random batch tests on arrival for traceability.
Know your local regs and corrosion requirements, then write down QC procedures by metal type, with sampling plans, accept levels and tool-wear monitoring triggers.
Beyond the Datasheet
Brass and bronze seldom act in the field as they do in a lab. Surface films develop, sound interacts with geometry, and recycling streams impact cost and lead time. For teams shipping climate, robotics and EV hardware, measure real aging, acoustic behavior and end-of-life impact in addition to tensile data.
Weave user input into the spec to reduce rework and boost yield.
Aesthetic Aging
Brass begins bright gold and transitions to brown or greenish hues as copper oxides and chlorides develop. Contact points darken more quickly from skin oils, while sealed insides remain lighter. This aging can lend warmth to consumer devices or clash with clean-room panels. The characteristics of different brass alloys can influence their appearance over time.
Bronze skews reddish-brown out of the box and heads to deep brown or verdigris, which is coveted for architectural hardware. Many buyers are opting for bronze alloys for that special patina on handles and fasteners, particularly where wear must appear deliberate, not tired. The unique properties of common bronze alloys contribute to their popularity.
Aging can help or hurt depending on the brand appearance. For humid zones or coastal sites, bronze’s saltwater corrosion resistance and increased hardness help minimize blotchy wear. Brass can spot without coatings, making the right material choice essential.
Design for coatings, waxes, or regular cleaning if color drift is a danger. Sample finish swatches, conduct 500-1,000 hour humidity/salt fog exposures, and gather end-user feedback from actual handling. Select the right metal alloy and finish from the exposure map, not just early color chips.
Acoustic Properties
Brass continued to be the choice for trumpets and trombones because of its stable resonance and ability to be formed easily into complex tapers. Workability sustains thin-walled forms that modulate overtones.
Bronze sings in bells, cymbals and string instrument hardware with clearer attack and longer sustain. Superior hardness and damping behavior provide that edge many players desire.
Content counts. Yellow brass (Cu-Zn 65-35) suits brasswinds; phosphor bronze (Cu-Sn-P) suits springs and guitar strings; bell bronze (Cu-Sn 80-20) fits cast bells and cymbals. Designers should enumerate target alloys per part to lock tone early.
Recyclability Impact
Both alloys recycle well, enabling supporting closed-loop programs and lower scope 3 impacts. Real recycling rates fluctuate with contamination and mixed chips.
Separate by alloy family, flush out cutting fluids, and identify bins to save value. Bronze typically utilizes more expensive, labor-intensive melts with additives. Clean returns balance charge cost.
Brass’s lower melting point (~900°C vs. Bronze ~950°C) can save energy in remelt and shorten cycle time. For big runs, plan scrap flow, anticipated buybacks and CO2 per kg.
Choose bronze for marine hardware where corrosion and dent resistance reign, choose brass for decorative housings requiring crisp detail and low forming force. Match the option with spec, service climate and the recycling plan.
Designing for Brass and Bronze
Design decisions need to echo each alloy’s unique response to achieve performance goals and maintain manufacturability. Tolerances, wall thickness and joining decisions control yield, leak-tightness and fatigue life. Mismatch the material and you risk galling, warping, porosity or cracked joints.
Early engagement with material suppliers and manufacturing partners minimizes risk and streamlines debug. Both brass and bronze are copper-based and proven for thousands of years, yet they solve different jobs: brass for formability and heat flow; bronze for wear and marine resilience.
Tolerances
Brass’s high ductility lends itself to the tight tolerances in precision metalworking. It machines clean, resists burr growth, and holds size well in high-volume runs. That’s why it suits connectors and valve bodies and musical hardware that has to mate and seal.
Bronze is harder and in many cases more abrasive. Looser tolerances avoid tool push-off, micro-cracking, and heat induced distortion. Bearings and clutch plates enjoy fit classes that handle oil films.
- Practical note: validate tolerances via process capability (Cp/Cpk) at pilot scale before committing. Tie gage r&r to ctqs.
Recommended tolerance ranges (indicative):
- Brass, CNC-milled connectors: ±0.02–0.05 mm, reamed bores H7.
- Brass, turned fittings: ±0.01–0.03 mm on shafts.
- Bronze, bushings (machined): ±0.03–0.08 mm; bore per ISO H8/H9 for press fit.
- Bronze, cast housings: ±0.1–0.3 mm pre-machining stock.
Build a project-specific table by alloy grade, process (CNC, casting, forging), and functional stack-up.
Wall Thickness
Minimums vary with strength and casting flow. Brass rewards even sections for consistent cooling and reduced distortion. Plus it disperses heat nicely, which helps with thermal management in heat exchangers and electrical components.
Certain bronze alloys have a small amount of pre-set expansion, allowing thin-walled, high-detail castings if gating and risers are optimized. Still, too-thin walls tempt hot tears and premature fatigue.
Look at ISO, ASTM, and foundry guides for minimums based on section size. Run solidification and fill simulations to lock draft, ribs, and fillets prior to tool cut.
Joining Methods
Brass solders and brazes easily, making it a great material for plumbing and electrical connectors. Its pliability aids capillary action and snug seals. Bronze alloys have a higher melting point (≈950–1030°C) and greater hardness, so use controlled heat input and filler compatibility, especially in marine builds where the unique properties of bronze’s corrosion resistance shine.
- Brass:
- Soft solder for low-pressure plumbing.
- Silver brazing to high-strength joints.
- TIG with silicon-bronze filler for thin sections.
- Bronze:
- TIG w/ ERCuSi-A or ERCuAl-A2 filler for bushings.
- MIG pulse on large fabrications.
- Braze for mixed-metal joints, preheat to reduce cracking.
A Smarter Sourcing Solution
Smarter sourcing for different brass alloys and bronze equals less guessing, fewer handoffs, and cleaner data every step of the way. The goal is simple: choose the right metal alloy, prove it’s manufacturable, lock reliable lead times, and protect margins without trading off quality or sustainability.
Wefab.ai is an AI-first contract manufacturing partner, not a marketplace. The platform handles DFM, sourcing, production, and QA across a vetted supplier network, serving as a single source of contact from design to delivery. That counts when comparing brass vs. Bronze for precision bushings, marine fittings, battery lugs or decorative housings.
AI-empowered DFM tools examine models and drawings for thin walls, burr-prone edges, tool access boundaries, and tolerance stack hazards. They suggest alloy swaps—e.g., free-cutting brass to tin bronze alloys for wear in oscillating joints—or a temper change to hit yield strength while cutting machining forces. The platform optimizes process routes across CNC, die casting, or investment casting with real-time cost deltas.
Material intelligence goes live. The platform surfaces stock levels, mill MOQs, and forecasted lead times by region — even India-based sources for cost control and tariff-sensitive programs. Teams get to view price bands per kg for common alloys (eg, C360 brass vs C932 bronze), as well as the downstream impact on cycle time, tool wear, & surface finish steps.
Analytics collects supplier ontimes, Cp/Cpk on critical dims, scrap trends by alloy, and market moves for copper content—so buyers can lock-in or hedge. This optimizes negotiations, inventory policies, and reroute decisions when disruptions strike.
One source of contact eliminates lags and static. Automated vendor discovery and risk scoring qualifies foundries and machine shops for salt-spray, RoHS/REACH and conflict mineral compliance. Predictive project tracking, for example, flags bottlenecks such as bronzes with long heat-treat queues days earlier.
Computer-vision-driven QC checks for surface porosity, tool chatter and plating defects prior to shipment. Clients see 34% shorter lead times, 28% cost savings and 85% faster PO cycles eliminating manual work, revealing blind spots, and matching specs to processes able.
This scales for global, complex supply chains. It enhances supplier collaboration, eliminates rework and increases yield while enabling sustainability filters — energy mix at mills, recycled content and waste scores.
Smart rollout begins by mapping existing procurement paths, identifying business goals, and phasing different metals families.
Conclusion
Teams in hardware battle tight lead times, price swings and spec drift. Brass versus bronze adds more tension. Choose incorrectly and you’re looking at scrap, leaks, or slow runs. Costs increase. Launch dates get pushed around. Trust gets whacked across ops, QA, and finance.
Smart choices cure that. Good design rules, supplier vetting and real test data increase yield. Tight GD&T, proper alloy callouts and fit-for-use finishes reduce risk. Strong metrology and SPC hold pieces in spec. Lead times compress. Unit costs fall. Field yields drop.
To go fast with less guesswork, sidle up with a partner with AI-linked sourcing and real shop depth. WeFab connects design, DFM advice, and vetted mills in a single stream.
Up for stepping up? Check out Wefab.ai and get an immediate quote now!
Frequently Asked Questions
What are the key differences between brass and bronze?
Brass, a copper alloy with zinc, features higher machinability and good electrical conductivity. In contrast, bronze alloys, which are primarily copper with tin, provide superior wear and corrosion resistance, making them ideal for marine components and decorative items.
How do mechanical properties compare for design decisions?
Brass, a type of copper alloy, generally exhibits greater machinability (up to 100!) and good ductility, while common bronze alloys tend to have more hardness and greater fatigue resistance. For sliding components, bronze minimizes galling, making it a great material for various applications.
Which alloy performs better in corrosive environments?
Bronze alloys tend to resist corrosion better, especially in chloride or marine environments. Aluminum bronze alloys and phosphor bronze score high in seawater and bearing use, while different brass alloys can dezincify in aggressive media.
What tolerances and finishes are realistic for brass vs. bronze?
Brass accommodates tight tolerances and fine finishes due to its excellent machinability, making it a great material for various applications. Surface roughness under Ra 0.8 µm is typical with good tooling, while common bronze alloys can attain similar finishes but may require slower feeds and fine-tuned lubrication to manage heat and tool wear.
How should I approach cost versus performance?
Brass, a common type of metal alloy, typically reduces machining costs due to its higher speed and longer tool life. Bronze alloys can effectively cut lifecycle costs in wear or corrosion-critical parts by extending service intervals, making them great materials for various applications.
What data beyond datasheets should inform selection?
Validate with application testing: tribology data, salt-spray or immersion tests, and thermal cycling. Check failure modes such as dezincification or fretting in different brass alloys. Employ process capability data (Cp/Cpk) and dimensional stability from pilot runs to validate manufacturability and quality of metal alloys.
How do design features differ for brass and bronze parts?
For brass alloys, leverage thin walls and complex features with sharp details. For bronze alloys, add generous fillets, larger bearing areas, and lubrication grooves. Manage surface speed in sliding interfaces to highlight the unique properties of different metals. Apply surface treatments only when necessary to prevent dimensional distortion.
